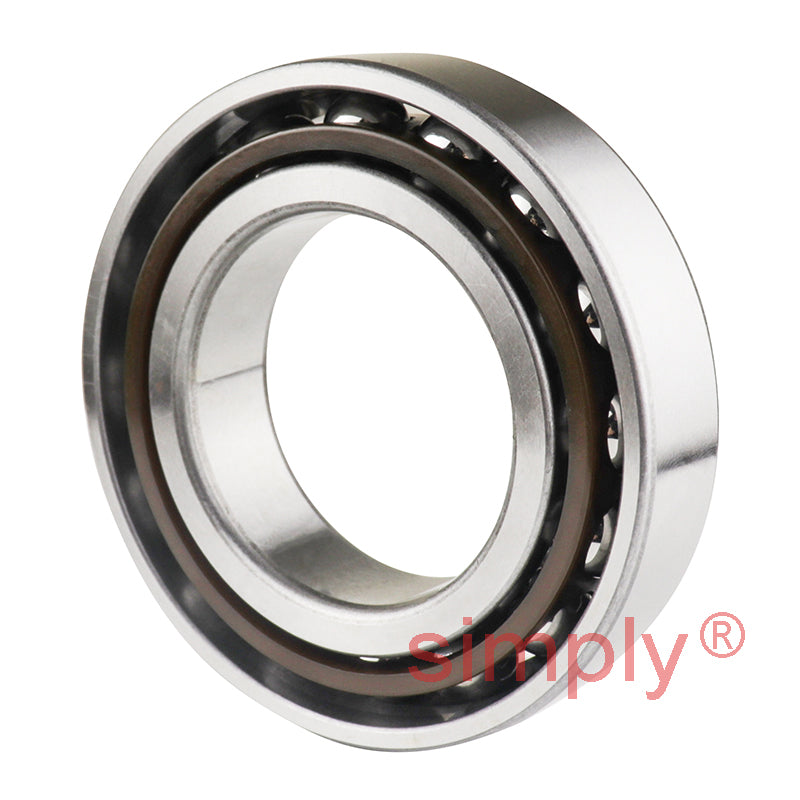

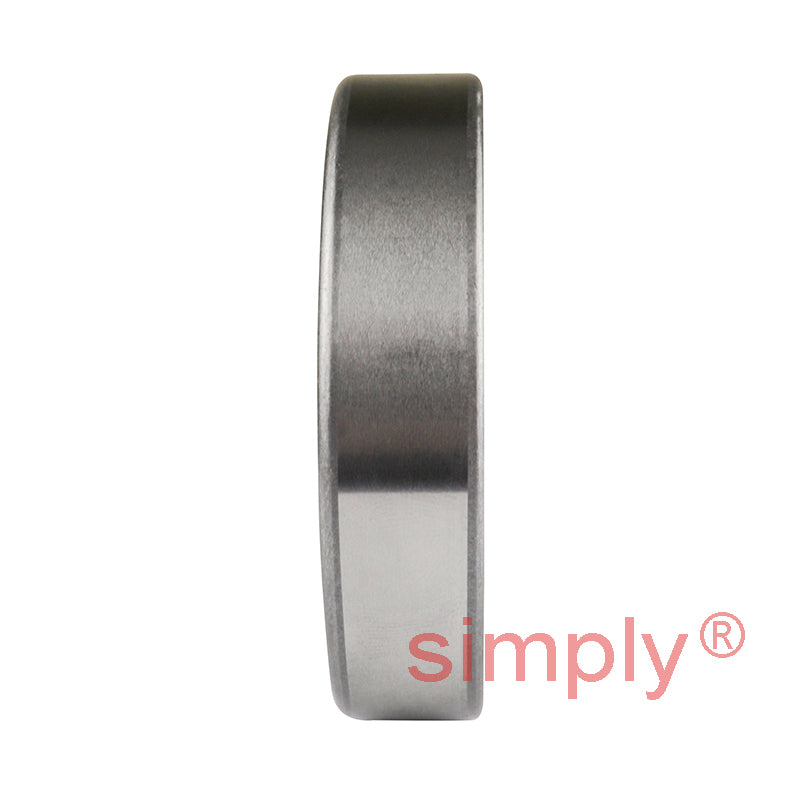

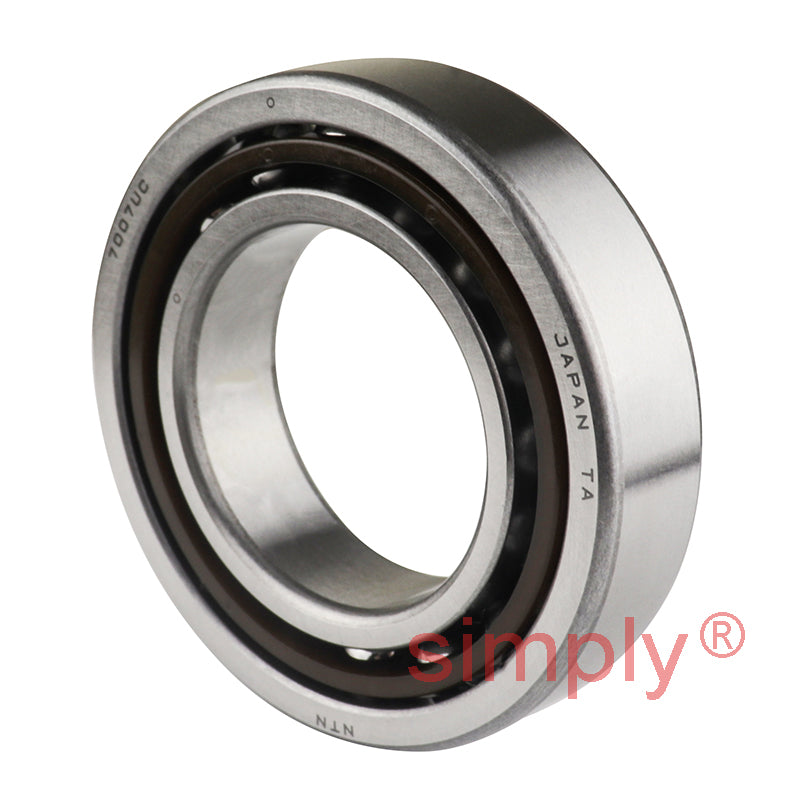

NTN 7007UCDB/GNP4 Duplex Angular Contact Bearing 35x62x28mm

NTN 7007UCDB/GNP4 Duplex Angular Contact Bearing 35x62x28mm
$171.49 ex VAT
$171.49 ex VAT
Sale Sold out

In stock

Price Break
10+ $114.87
19+ $108.42
29+ $107.13
39+ $105.84
49+ $104.55
74+ $103.26
99+ $96.80
199+ $95.51
249+ $94.22
499+ $92.93
999+ $90.35

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description

Duplex Angular Contact Ball Bearing - Back to Back
This bearing is manufactured as two angular contact ball bearings back to back. See schematic for further information.

Brand / Quality:
NTN - High Quality
Inside Diameter:
35mm
Outside Diameter:
62mm
Width:
28mm
Seals / Shields:
None
Clearance:
* Standard
Technical
d 35mm
D 62mm
B 28 mm
2B 28mm
d1 44mm
d2 42mm
D1 52mm
D2 57mm
r 1mm
r1 0.6mm
da min 40.5mm
Da max 56.5mm
Db max 57.5mm
ras max 1mm
r1as max 0.6mm
Contact Angle 15 ?
Limiting Speed - Oil 30960 RPM
Limiting Speed - Grease 19360 RPM
Material High Carbon Chrome Steel
Cage Type Fiber Glass Reinforced
Cage Material Nylon
Ball Material Steel
Temperature Range -40 to 250 ?F-40 to 120 ?C
