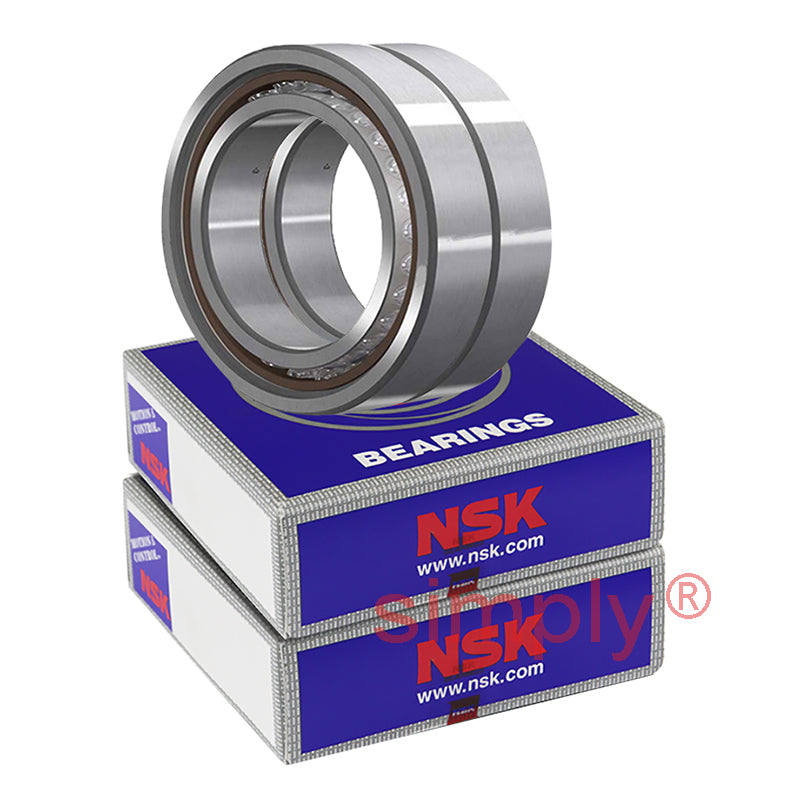

• NSK 7011A5TRV1VDULP2 Super Precision Sealed Angular Contact Spindle Bearing 55x90x18mm (Set of 2)
  • NSK
1 2

SKU: 7011A5TRV1VDULP2-NSK

NSK 7011A5TRV1VDULP2 Super Precision Sealed Angular Contact Spindle Bearing 55x90x18mm (Set of 2)

NSK 7011A5TRV1VDULP2 Super Precision Sealed Angular Contact Spindle Bearing 55x90x18mm (Set of 2)
$912.46 ex VAT
$912.46 ex VAT
Sale Sold out

In stock

Price Break
3+ $611.19
5+ $576.85
10+ $569.98
25+ $563.11
49+ $556.25
74+ $549.38
99+ $515.04
199+ $508.18
249+ $501.31
499+ $494.44
999+ $480.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
55mm
Outside Diameter:
90mm
Width:
18mm
Seals / Shields:
Rubber Sealed
Style:
Universal Matched Pair of Bearings
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 55mm
D 90mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 34Kn
C<sub>or</sub> 27.2kN
Axial load Kn 21.8 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 25.9mm
Max speed in grease 13800 rpm
Max speed in oil 20700 rpm
--- Fitting dimensions
d<sub>a min</sub> 62mm
D<sub>a max</sub> 83mm
D<sub>b max</sub> 85mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.766kg
