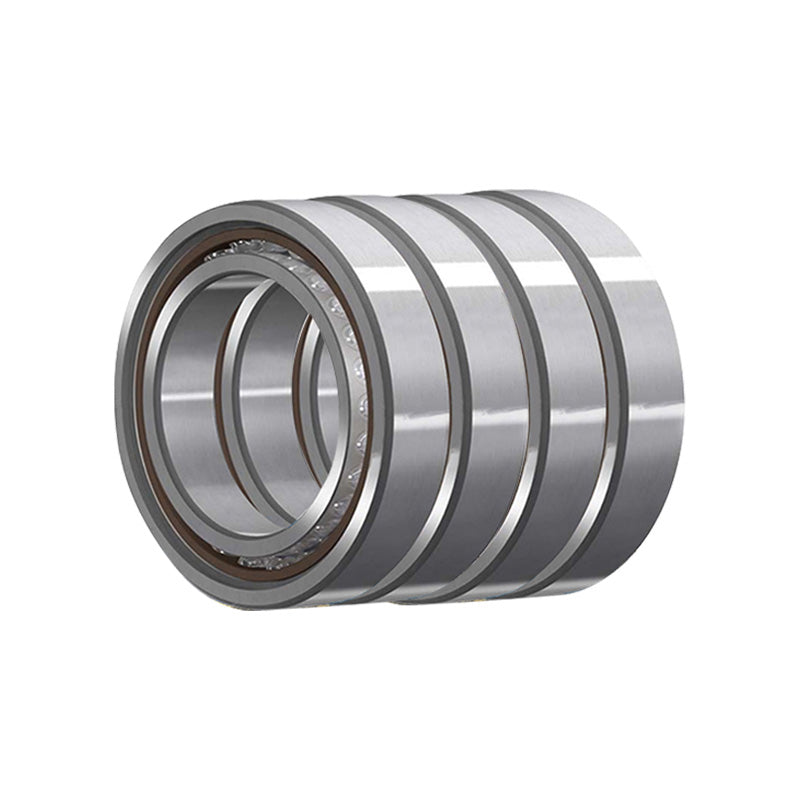

• RHP 7012A5TRQULP4 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)
1 1

SKU: 7012A5TRQULP4-RHP

RHP 7012A5TRQULP4 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)

RHP 7012A5TRQULP4 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 4)
$1,101.72 ex VAT
$1,101.72 ex VAT
Sale Sold out

In stock

Price Break
3+ $737.96
5+ $696.50
10+ $688.21
25+ $679.92
49+ $671.63
74+ $663.33
99+ $621.88
199+ $613.58
249+ $605.29
499+ $597.00
999+ $580.42

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
None
Style:
Universal Matched Quad Bearing Set
Contact Angle:
25 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 35Kn
C<sub>or</sub> 29.1kN
Axial load Kn 23 kN
Contact angle 25 degrees
Factor f<sub>o</sub> -
Effective diameter 27.1mm
Max speed in grease 13000 rpm
Max speed in oil 19400 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 1.632kg
