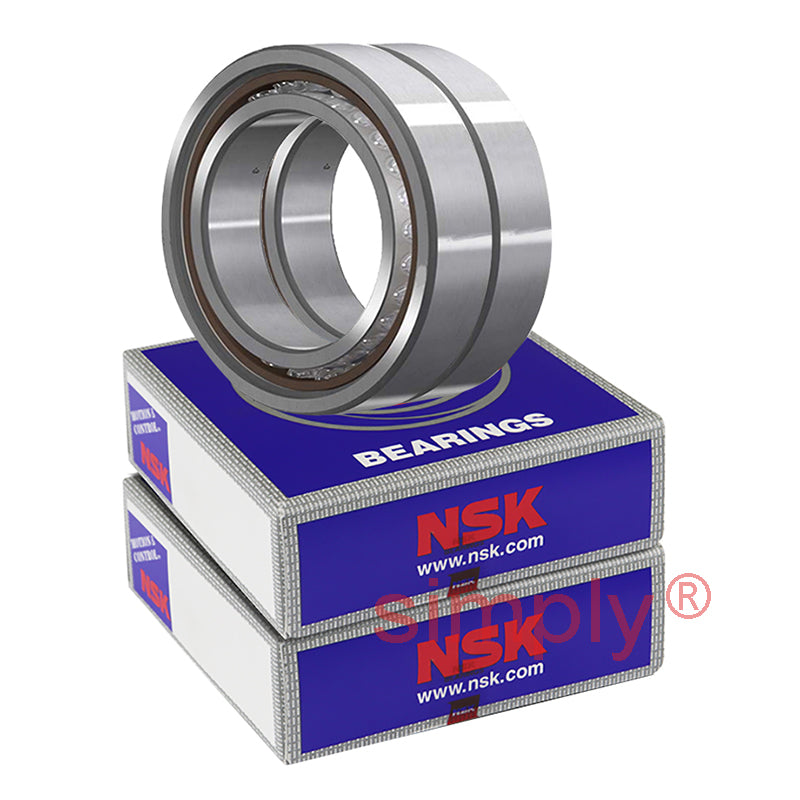

• NSK 7012CTRDUMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 2)
  • NSK
1 2

SKU: 7012CTRDUMP3-NSK

NSK 7012CTRDUMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 2)

NSK 7012CTRDUMP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm (Set of 2)
$567.79 ex VAT
$567.79 ex VAT
Sale Sold out

In stock

Price Break
3+ $380.32
5+ $358.96
10+ $354.68
25+ $350.41
49+ $346.14
74+ $341.86
99+ $320.50
199+ $316.22
249+ $311.95
499+ $307.68
999+ $299.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 37Kn
C<sub>or</sub> 30.5kN
Axial load Kn 19.9 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 19.4mm
Max speed in grease 14900 rpm
Max speed in oil 22600 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.81kg
