• RHP 7012CTRSULP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm
1 1

SKU: 7012CTRSULP3-RHP

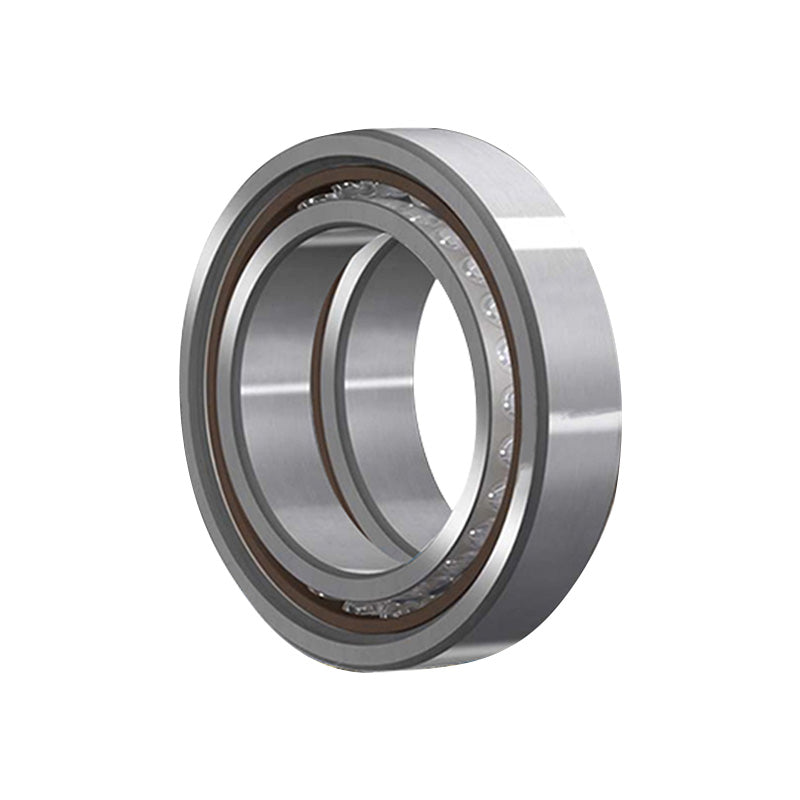

RHP 7012CTRSULP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm

RHP 7012CTRSULP3 Super Precision Angular Contact Spindle Bearing 60x95x18mm
$284.75 ex VAT
$284.75 ex VAT
Sale Sold out

In stock

Price Break
3+ $190.73
5+ $180.02
10+ $177.87
25+ $175.73
49+ $173.59
74+ $171.45
99+ $160.73
199+ $158.59
249+ $156.44
499+ $154.30
999+ $150.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
RHP - High Quality
Inside Diameter:
60mm
Outside Diameter:
95mm
Width:
18mm
Seals / Shields:
None
Style:
Single Universal Matchable Bearing
Contact Angle:
15 Degree contact angle
Bearing Preload:
Light preload
Technical
--- Bearing dimensions
d 60mm
D 95mm
B 18mm
r<sub>min</sub> 1.1mm
r1<sub>min</sub> 0.6mm
--- Loads angles and speeds
C<sub>r</sub> 37Kn
C<sub>or</sub> 30.5kN
Axial load Kn 19.9 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 15.7
Effective diameter 19.4mm
Max speed in grease 14900 rpm
Max speed in oil 22600 rpm
--- Fitting dimensions
d<sub>a min</sub> 67mm
D<sub>a max</sub> 88mm
D<sub>b max</sub> 90mm
r<sub>a max</sub> 1mm
r<sub>b max</sub> 0.6mm
Weight 0.405kg
