SKU: 7016CTRDUDLP3-RHP

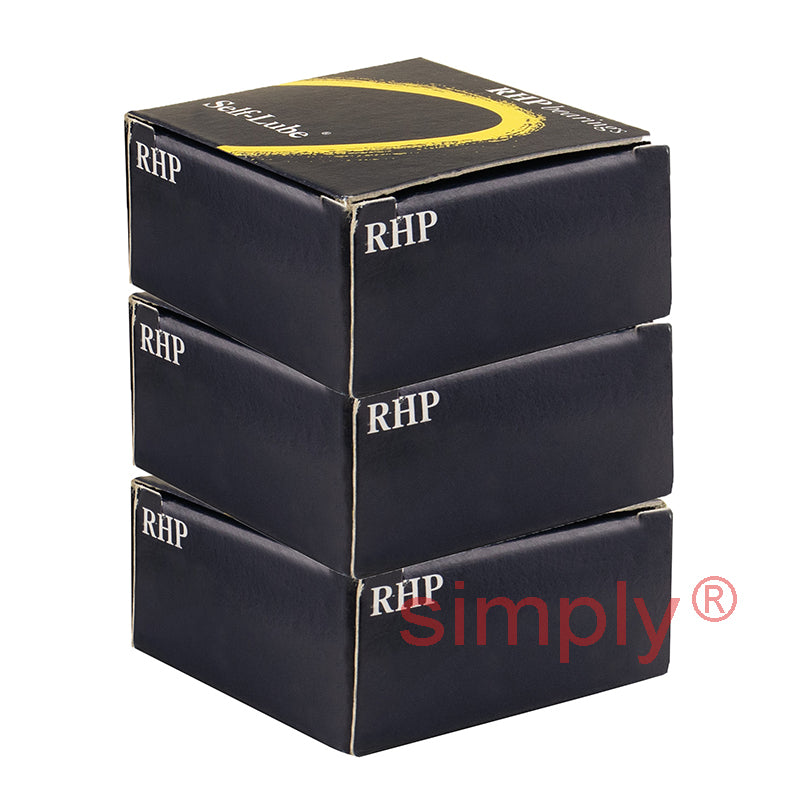

RHP 7016CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 80x125x22mm (Set of 3)

Name: RHP 7016CTRDUDLP3 Super Precision Angular Contact Spindle Bearing 80x125x22mm (Set of 3)
Brand: RHP
SKU: 7016CTRDUDLP3-RHP
Price: 1219.25 USD
Availability: InStock

$1,219.25 ex VAT

Sale Sold out

In stock

Price Break

3+ $816.69

5+ $770.81

10+ $761.64

25+ $752.46

49+ $743.28

74+ $734.11

99+ $688.22

199+ $679.05

249+ $669.87

499+ $660.70

999+ $642.34

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: RHP - High Quality
Inside Diameter:: 80mm
Outside Diameter:: 125mm
Width:: 22mm
Seals / Shields:: None
Style:: Universal Matched Triple Bearing Set
Contact Angle:: 15 Degree contact angle
Bearing Preload:: Light preload

Technical

---	Bearing dimensions
d	80mm
D	125mm
B	22mm
r<sub>min</sub>	1.1mm
r1<sub>min</sub>	0.6mm
---	Loads angles and speeds
C<sub>r</sub>	61.5Kn
C<sub>or</sub>	55.5kN
Axial load Kn	34.5 kN
Contact angle	15 degrees
Factor f<sub>o</sub>	15.7
Effective diameter	24.7mm
Max speed in grease	11300 rpm
Max speed in oil	17100 rpm
---	Fitting dimensions
d<sub>a min</sub>	87mm
D<sub>a max</sub>	118mm
D<sub>b max</sub>	120mm
r<sub>a max</sub>	1mm
r<sub>b max</sub>	0.6mm
Weight	2.565kg
