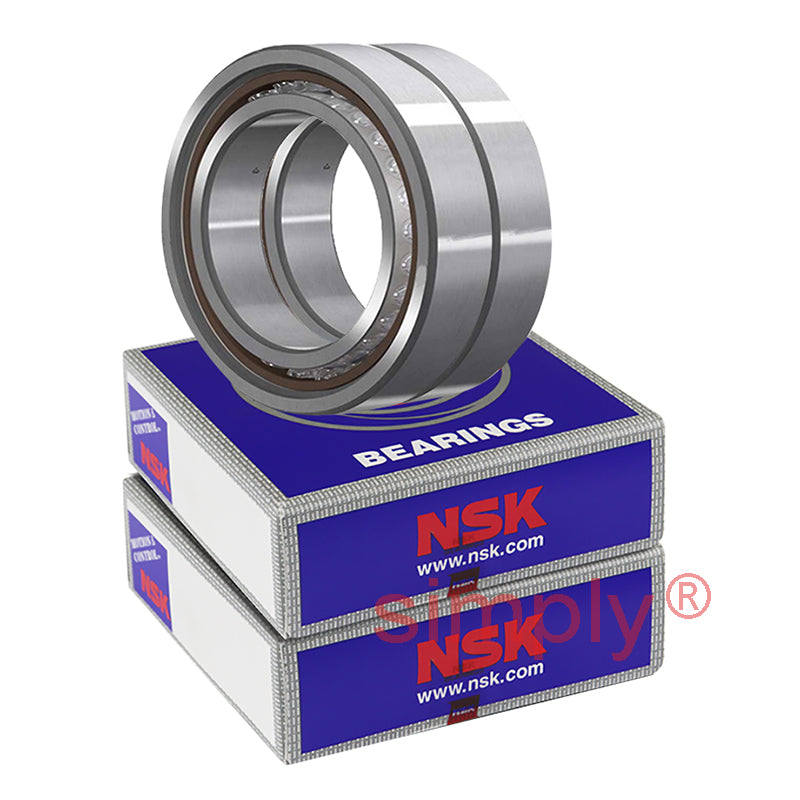

• NSK 7028CTRDUMP3 Super Precision Angular Contact Spindle Bearing 140x210x33mm (Set of 2)
  • NSK
1 2

SKU: 7028CTRDUMP3-NSK

NSK 7028CTRDUMP3 Super Precision Angular Contact Spindle Bearing 140x210x33mm (Set of 2)

NSK 7028CTRDUMP3 Super Precision Angular Contact Spindle Bearing 140x210x33mm (Set of 2)
$2,227.33 ex VAT
$2,227.33 ex VAT
Sale Sold out

In stock

Price Break
3+ $1,491.93
5+ $1,408.12
10+ $1,391.35
25+ $1,374.59
49+ $1,357.83
74+ $1,341.06
99+ $1,257.25
199+ $1,240.48
249+ $1,223.72
499+ $1,206.96
999+ $1,173.43

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
NSK - High Quality
Inside Diameter:
140mm
Outside Diameter:
210mm
Width:
33mm
Seals / Shields:
None
Style:
Universal Matched Pair of Bearings
Contact Angle:
15 Degree contact angle
Bearing Preload:
Medium preload
Technical
--- Bearing dimensions
d 140mm
D 210mm
B 33mm
r<sub>min</sub> 2mm
r1<sub>min</sub> 1mm
--- Loads angles and speeds
C<sub>r</sub> 139Kn
C<sub>or</sub> 145kN
Axial load Kn 90 kN
Contact angle 15 degrees
Factor f<sub>o</sub> 16
Effective diameter 39.9mm
Max speed in grease 6600 rpm
Max speed in oil 10000 rpm
--- Fitting dimensions
d<sub>a min</sub> 150mm
D<sub>a max</sub> 200mm
D<sub>b max</sub> 204mm
r<sub>a max</sub> 2mm
r<sub>b max</sub> 1mm
Weight 6.82kg
