SKU: 70G2809-GATES

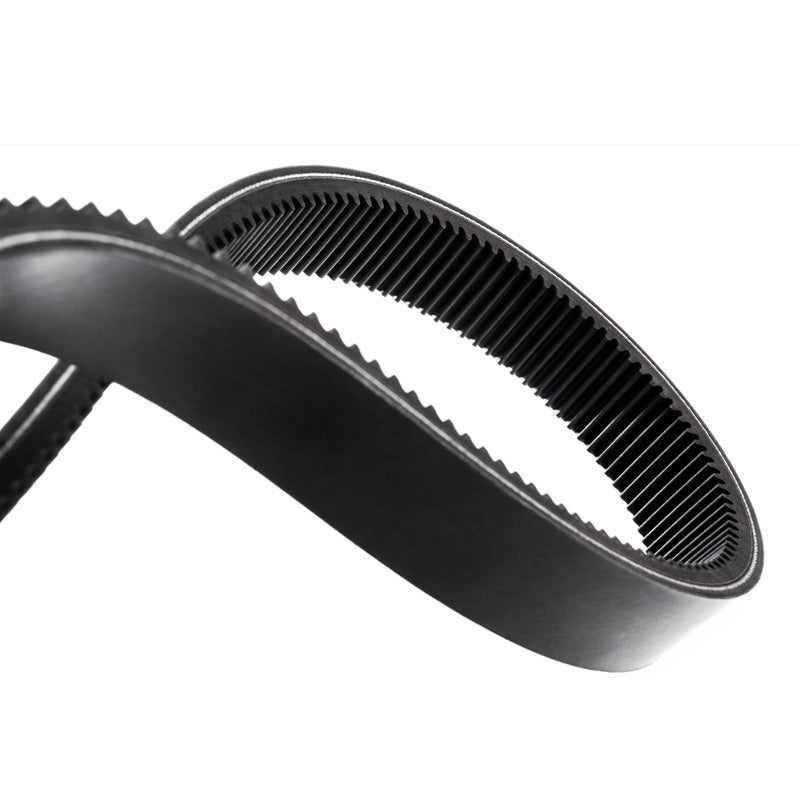

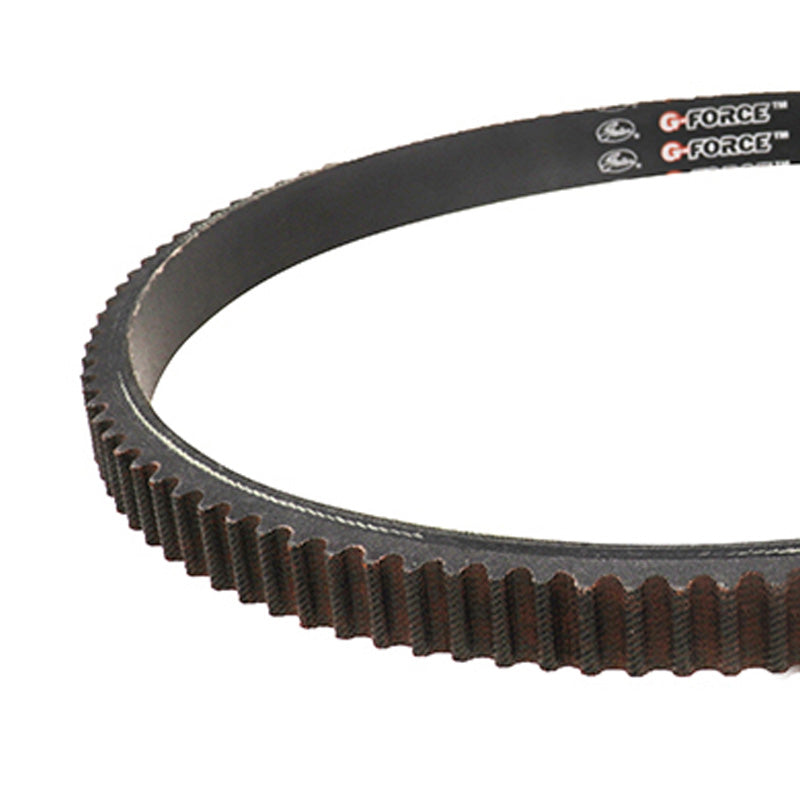

Gates G-Force 70G2809 Variable Speed Belt 712mm Length 17mm Width
- Regular price
- $47.23 ex VAT
- Sale price
- $47.23
- Regular price
-
In stock
Quantity Price Breaks
10
$42.03
19
$39.67
29
$39.20
39
$38.73
49
$38.26
74
$37.78
99
$35.42
199
$34.95
249
$34.48
499
$34.01
999
$33.06
SKU:
70G2809-GATES
Gates G-Force 70G2809 Variable Speed Belt 712mm Length 17mm Width
- Regular price
- $47.23 ex VAT
- Sale price
- $47.23
- Regular price
-
Description
Gates G-Force CVT Belts: Gates® G-Force™ continuously variable transmission (CVT) belts are the ultimate, high-tech component for transferring power on your smaller recreational power sports equipment. G-Force™ belts are designed with durability, simplicity, performance and value in mind, then tested under tough conditions in controlled environments. So, whether you?re loading up your UTV for a hard day?s work or off-roading on the road less traveled, Gates recreational belt drives and power transmission solutions continue to push the limits of what?s possible so you can, too.
Benefits:Matches OE belt shift curves and pulley speed ratios; excellent performance at a reduced cost, Extensively lab-tested using severe-duty dynamometer conditions and on vehicles in the field, Advanced trapezoid top notch and rounded cog design maximize heat dissipation and flexibility
Benefits:Matches OE belt shift curves and pulley speed ratios; excellent performance at a reduced cost, Extensively lab-tested using severe-duty dynamometer conditions and on vehicles in the field, Advanced trapezoid top notch and rounded cog design maximize heat dissipation and flexibility
Technical
| Part Number | = | 70G2809 |
| Cross Section | = | RVS-R |
| Effective Length | = | 733mm (28.02 inch) |
| Outside Circumference | = | 712mm (28.875 inch) |
| Pitch Length | = | 712mm (28.016 inch) |
| Pitch Width | = | 16.8mm (0.663 inch) |

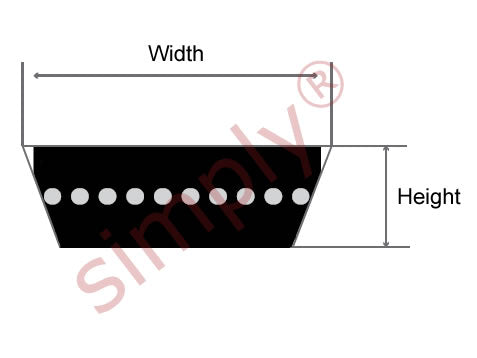

| Top Width | = | 17mm (0.688 inch) |
| Thickness (Height) | = | 8.9mm (0.35 inch) |
| Angle | = | 16.8 degress |
| Notched | = | True |
