SKU: 70USOC120-UKF

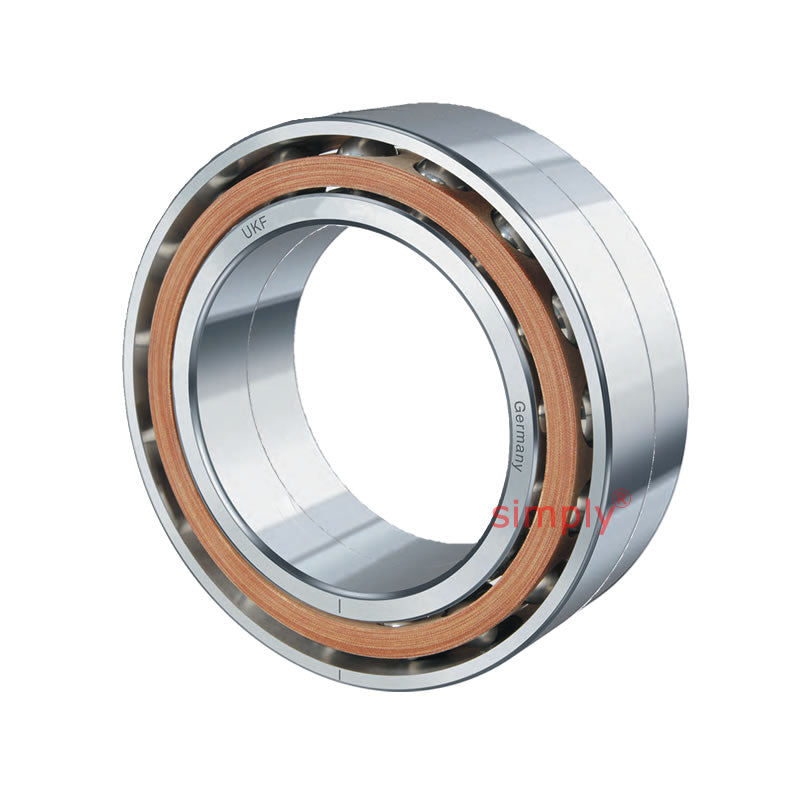

UKF 70USOC120 Super Precision Double Row Angular Contact Spindle Bearing 120x180x56mm
UKF 70USOC120 Super Precision Double Row Angular Contact Spindle Bearing 120x180x56mm
Equivalent to: 70USOC120
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 180mm
- Width:
- 56mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
Technical
Technical
| d | 120mm |
|---|---|
| D | 180mm |
| B | 56mm |
| Dynamic load Co | 118250 N |
| Static load C | 126210 N |
| Speed in Grease | 8100 rpm |
| Speed in Oil | 12600 rpm |
| r<sub>a</sub> | 1.5mm |
| d<sub>a</sub> | 132mm |
| D<sub>a</sub> | 168mm |
| Axial Preload F<sub>v</sub> L | 730 N |
| Axial Preload F<sub>v</sub> M | 2200 N |
| Axial Preload F<sub>v</sub> S | 4400 N |
| Axial Rigidity R<sub>a</sub> L | 247 N/μm |
| Axial Rigidity R<sub>a</sub> M | 357 N/μm |
| Axial Rigidity R<sub>a</sub> S | 449 N/μm |
| Radial Rigidity R<sub>r</sub> L | 989 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1426 N/μm |
| Radial Rigidity <sub>r</sub> S | 1794 N/μm |
| Weight | 3.66 kg |
