SKU: 70USSC140-UKF

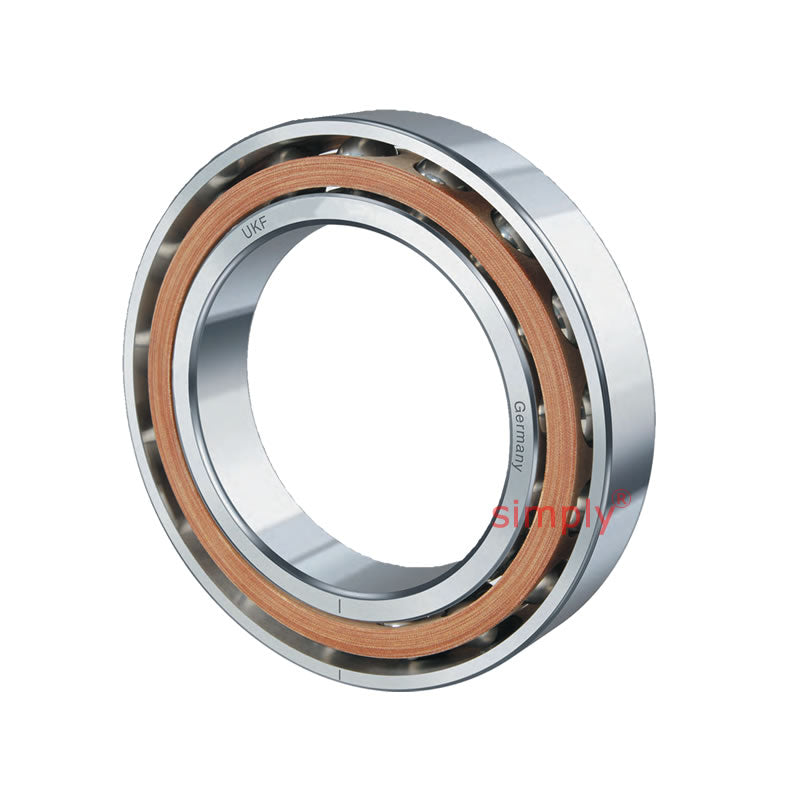

UKF 70USSC140 Super Precision Single Row Angular Contact Spindle Bearing 140x210x33mm
UKF 70USSC140 Super Precision Single Row Angular Contact Spindle Bearing 140x210x33mm
Equivalent to: 70USSC140
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 140mm
- Outside Diameter:
- 210mm
- Width:
- 33mm
- Seals / Shields:
- None
- Style:
- Single Row Angular Contact Spindle Bearing
- Contact Angle:
- 21 Degree contact angle
Technical
Technical
| d | 140mm |
|---|---|
| D | 210mm |
| B | 33mm |
| Dynamic load Co | 80630 N |
| Static load C | 97370 N |
| Speed in Grease | 7200 rpm |
| Speed in Oil | 11200 rpm |
| r<sub>a</sub> | 1.5mm |
| d<sub>a</sub> | 154.5mm |
| D<sub>a</sub> | 195.5mm |
| Axial Preload F<sub>v</sub> L | 940 N |
| Axial Preload F<sub>v</sub> M | 2880 N |
| Axial Preload F<sub>v</sub> S | 5760 N |
| Axial Rigidity R<sub>a</sub> L | 276 N/μm |
| Axial Rigidity R<sub>a</sub> M | 403 N/μm |
| Axial Rigidity R<sub>a</sub> S | 506 N/μm |
| Radial Rigidity R<sub>r</sub> L | 1116 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1622 N/μm |
| Radial Rigidity <sub>r</sub> S | 2047 N/μm |
| Weight | 2.98 kg |
