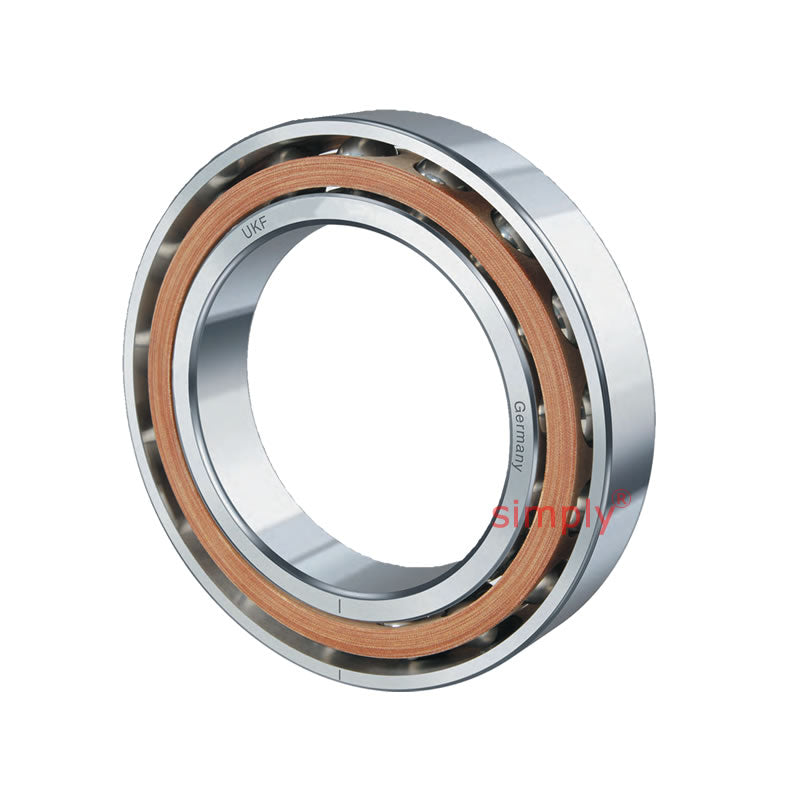

• UKF 70USSC90 Super Precision Single Row Angular Contact Spindle Bearing 90x140x24mm
1 1

SKU: 70USSC90-UKF

UKF 70USSC90 Super Precision Single Row Angular Contact Spindle Bearing 90x140x24mm

UKF 70USSC90 Super Precision Single Row Angular Contact Spindle Bearing 90x140x24mm

Equivalent to: 70USSC90

Out of stock

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
UKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
140mm
Width:
24mm
Seals / Shields:
None
Style:
Single Row Angular Contact Spindle Bearing
Contact Angle:
21 Degree contact angle
Technical
d 90mm
D 140mm
B 24mm
Dynamic load Co 37950 N
Static load C 51800 N
Speed in Grease 11200 rpm
Speed in Oil 17500 rpm
r<sub>a</sub> 1.2mm
d<sub>a</sub> 100mm
D<sub>a</sub> 130mm
Axial Preload F<sub>v</sub> L 510 N
Axial Preload F<sub>v</sub> M 1520 N
Axial Preload F<sub>v</sub> S 3040 N
Axial Rigidity R<sub>a</sub> L 196 N/&mu;m
Axial Rigidity R<sub>a</sub> M 282 N/&mu;m
Axial Rigidity R<sub>a</sub> S 357 N/&mu;m
Radial Rigidity R<sub>r</sub> L 794 N/&mu;m
Radial Rigidity R <sub>r</sub> M 1139 N/&mu;m
Radial Rigidity <sub>r</sub> S 1438 N/&mu;m
Weight 0.98 kg
