SKU: 70x95x13_SCSS_VI_NAK

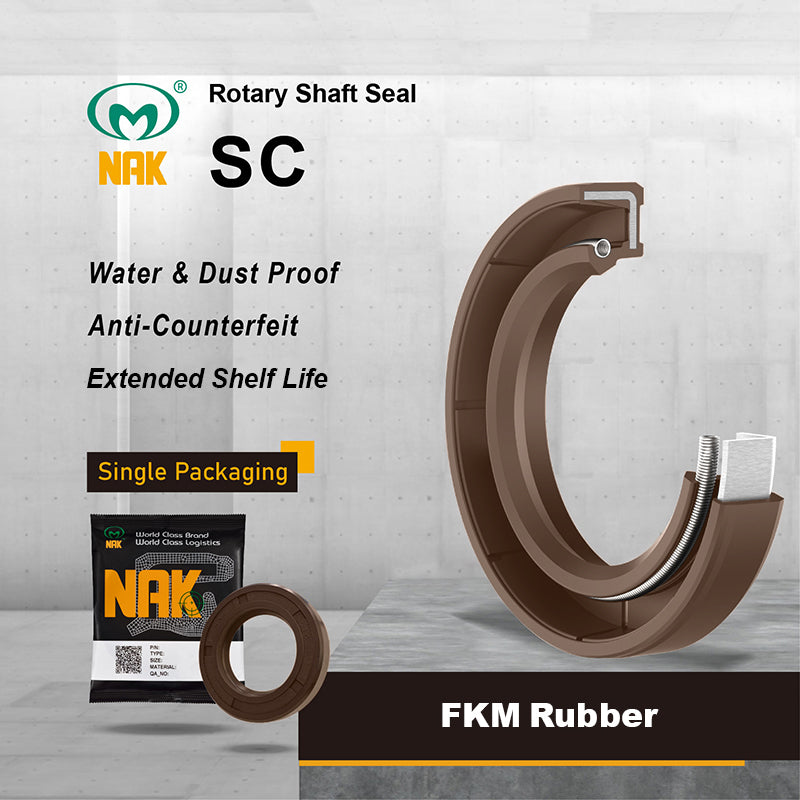

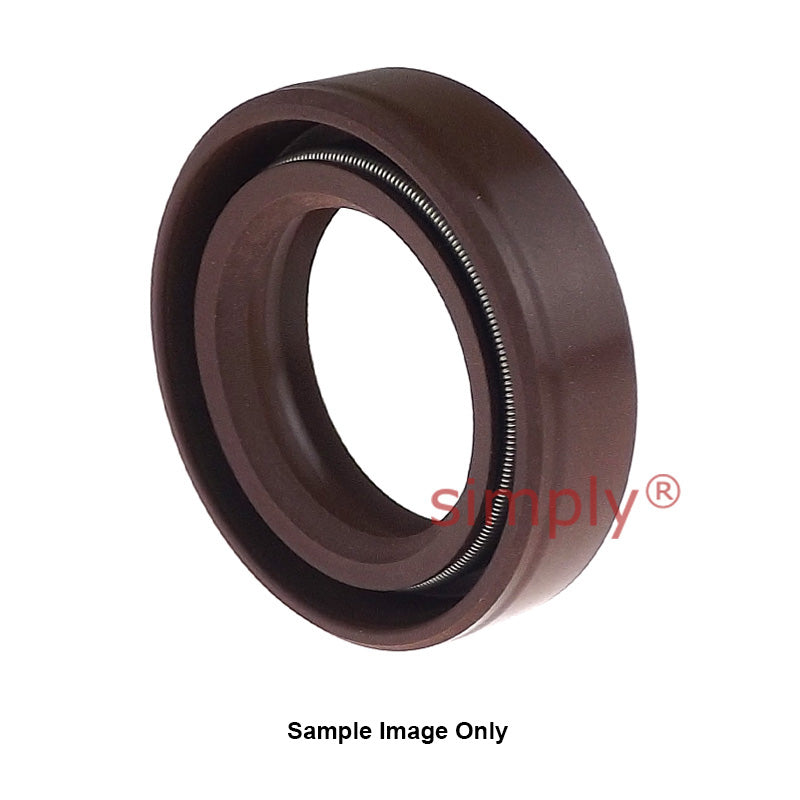

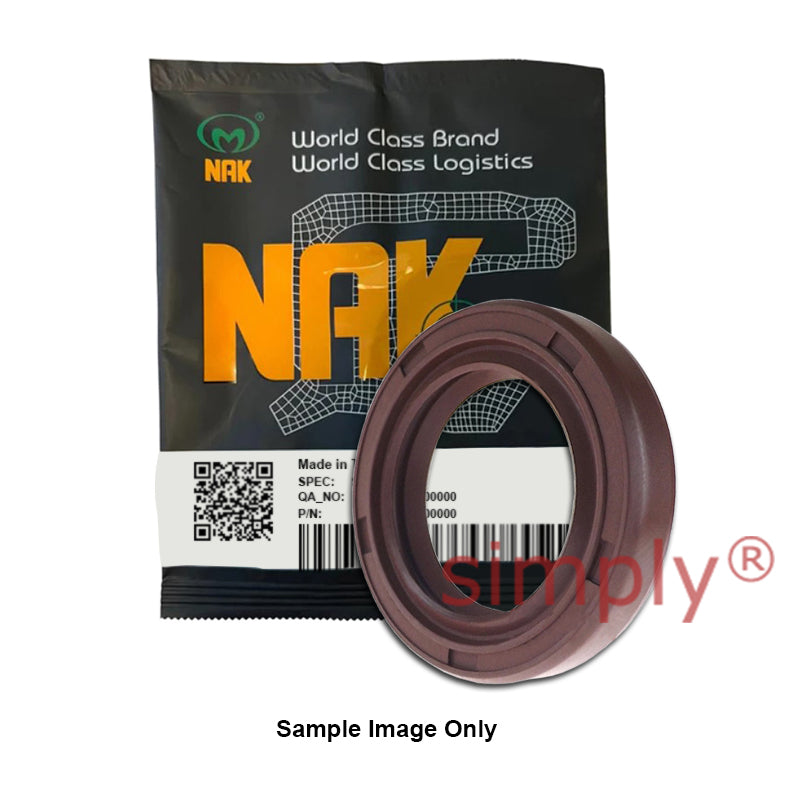

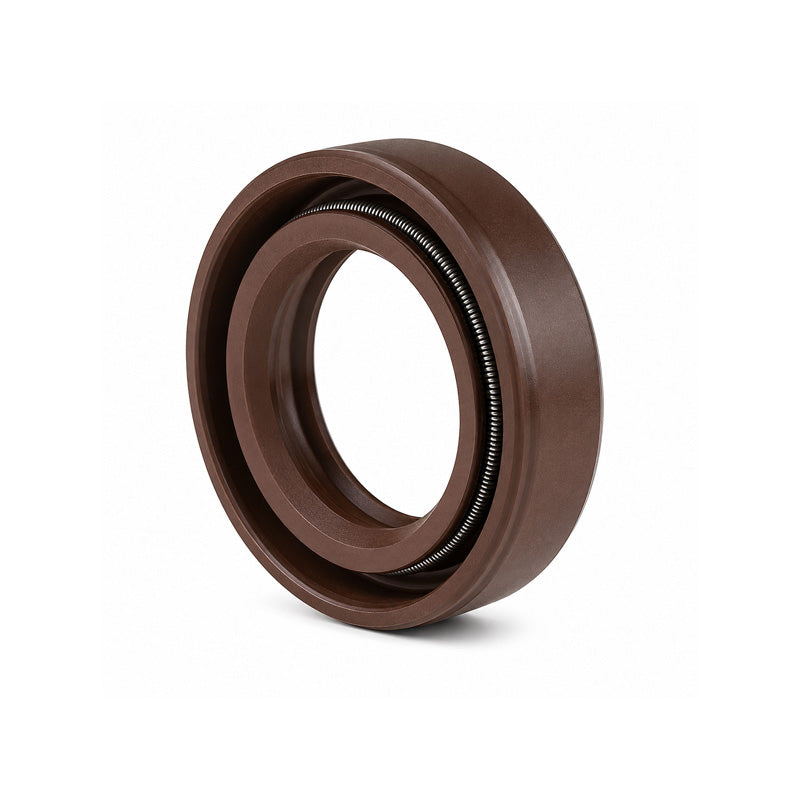

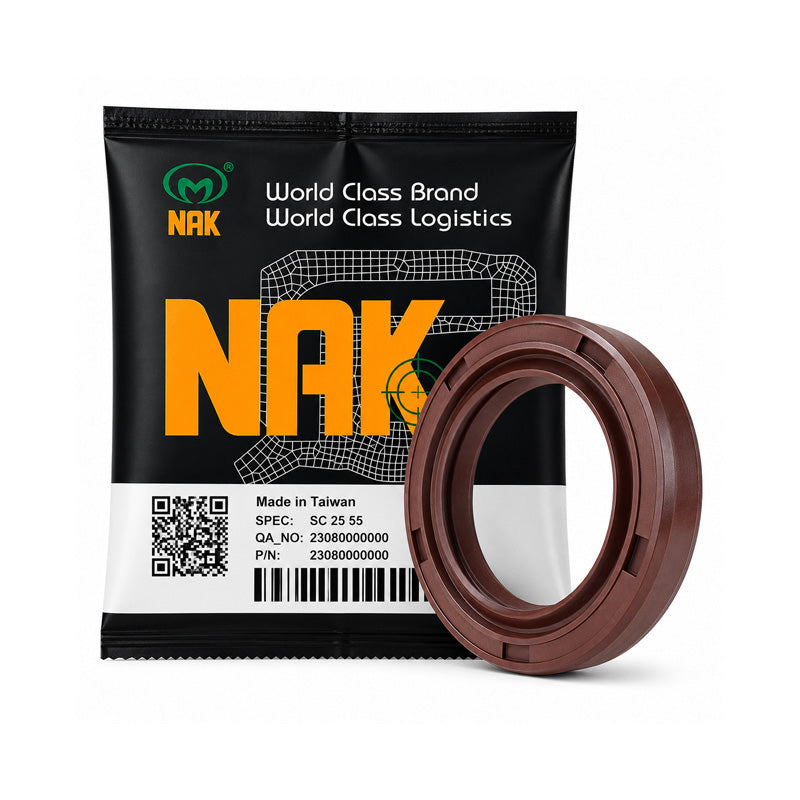

NAK 70x95x13mm FKM Rubber Single Lip Rotary Shaft Oil Seal with Stainless Spring SC
- Regular price
- $30.70 ex VAT
- Sale price
- $30.70
- Regular price
-
Quantity Price Breaks
NAK 70x95x13mm FKM Rubber Single Lip Rotary Shaft Oil Seal with Stainless Spring SC
- Regular price
- $30.70 ex VAT
- Sale price
- $30.70
- Regular price
-
Description
NAK SC FKM Rubber Oils Seals: Oil seals are used in a variety of different applications in which a rotating shaft is lubricated by oil or grease. They are engineered to facilitate the smooth operation of your equipment, serving as a barrier to prevent the leakage of oils and greases while also keeping foreign substances from entering. SC type seals (Also commonly called R21 seals) are one of the most commonly used types, they have a rubber-covered outside diameter with a single sealing lip on the inside diameter. The SC types feature a garter spring which allows some give to prevent a build-up of friction. (Seals under 5mm width may not always feature a spring.)
Benefits: High-temperature range, Chemical resistance, Higher wear resistance, Lower drag coefficient.
Technical
| --- | = | Dimensions |
| Shaft Size (not inside diameter) d | = | 70mm |
| Outside Diameter (D) | = | 95mm |
| Width (b) | = | 13mm |
| --- | = | Material |
| Material | = | FKM Rubber |
| Spring Material | = | Stainless Steel |
| = | Colour | |
| Brown | = | --- |
| Weights | = | Weight |
| 0.01 kg | = | N/A |
