SKU: 710-202055A2

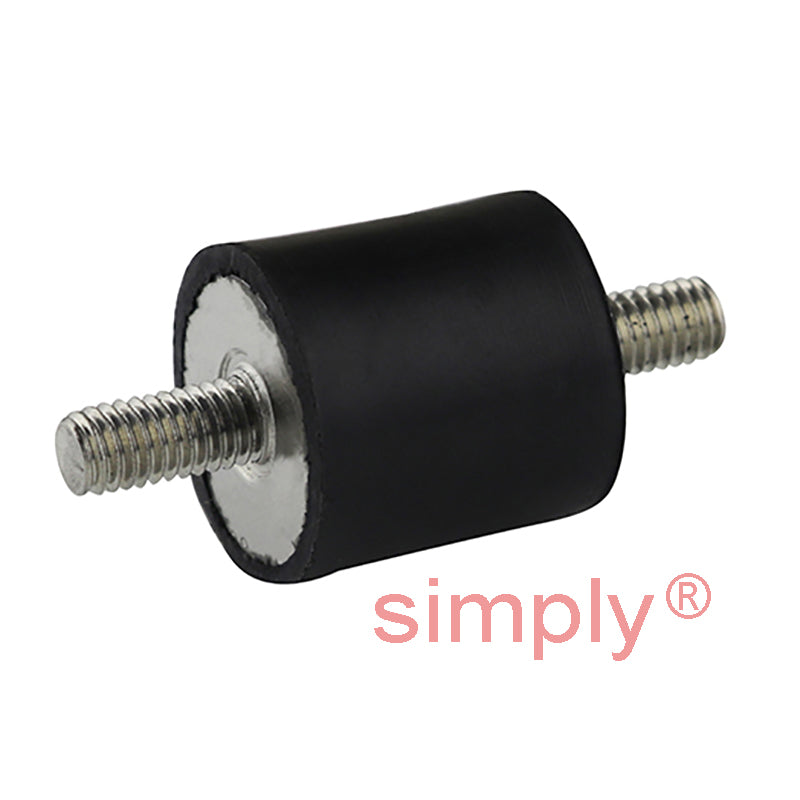

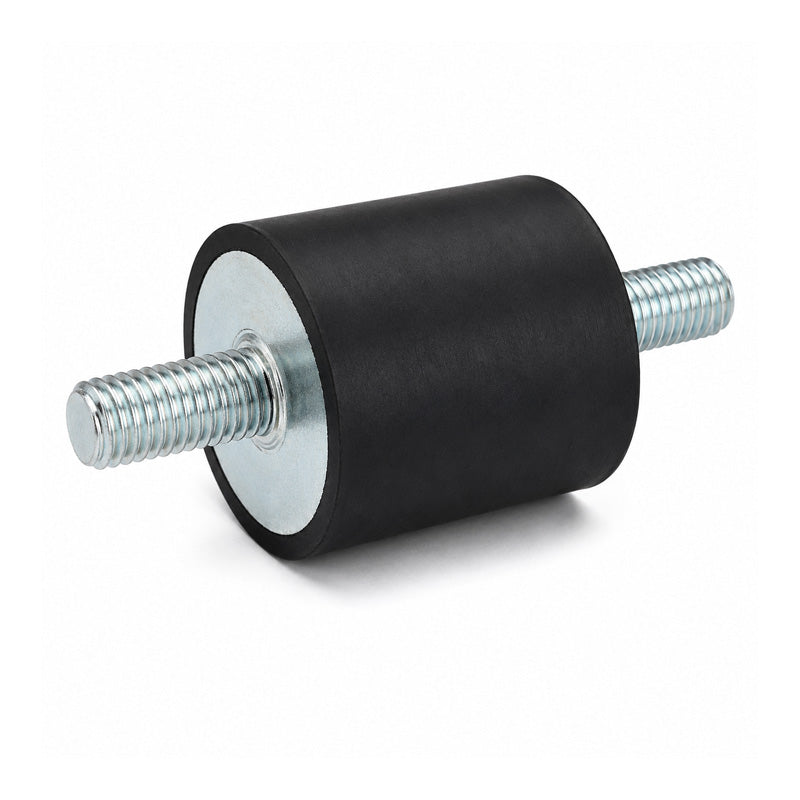

High-Performance 304 Stainless Steel Male/Male Anti-Vibration Bobbin 20x20mm M6 Threads

Name: High-Performance 304 Stainless Steel Male/Male Anti-Vibration Bobbin 20x20mm M6 Threads
Brand: Simply AV Mounts
SKU: 710-202055A2
Price: 7.93 USD
Availability: InStock

$7.93 ex VAT

Sale Sold out

In stock

Price Break

4+ $5.32

9+ $5.02

14+ $4.96

19+ $4.90

49+ $4.84

74+ $4.78

99+ $4.48

199+ $4.42

249+ $4.36

499+ $4.30

999+ $4.18

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M6
Outside Diameter:: 20mm
Length:: 20mm
Material:: Stainless Steel
Overall Length:: 56mm

Technical

D	20mm
D1	M6
D2	M6
L	20mm
L1	18mm
L2	18mm
Deflection at Max Compressive Load	2mm
Deflection at Max Sheer Load	5.2mm
Max Compressive Load	24 kg
Max Sheer Load	9.8 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.02 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+steel+nut">M6 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+set+screw">M6 Click Here</a>
