• High-Performance Male/Male Anti-Vibration Bobbin 30x25mm M8 Threads
1 1

SKU: 710-302555

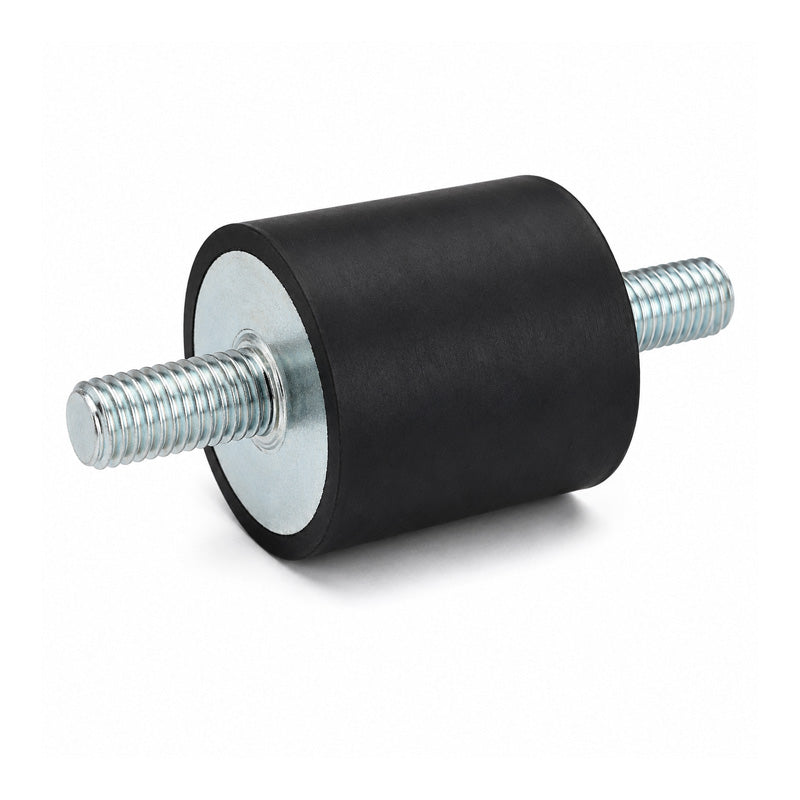

High-Performance Male/Male Anti-Vibration Bobbin 30x25mm M8 Threads

High-Performance Male/Male Anti-Vibration Bobbin 30x25mm M8 Threads
$7.44 ex VAT
$7.44 ex VAT
Sale Sold out

In stock

Price Break
4+ $4.98
9+ $4.70
14+ $4.64
19+ $4.59
49+ $4.53
74+ $4.48
99+ $4.20
199+ $4.14
249+ $4.09
499+ $4.03
999+ $3.92

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M8
Outside Diameter:
30mm
Length:
25mm
Material:
Bright Zinc Plated Steel
Overall Length:
71mm
Technical
D 30mm
D1 M8
D2 M8
L 25mm
L1 23mm
L2 23mm
Deflection at Max Compressive Load 3.2mm
Deflection at Max Sheer Load 6.3mm
Max Compressive Load 44.6 kg
Max Sheer Load 19.5 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.06 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
