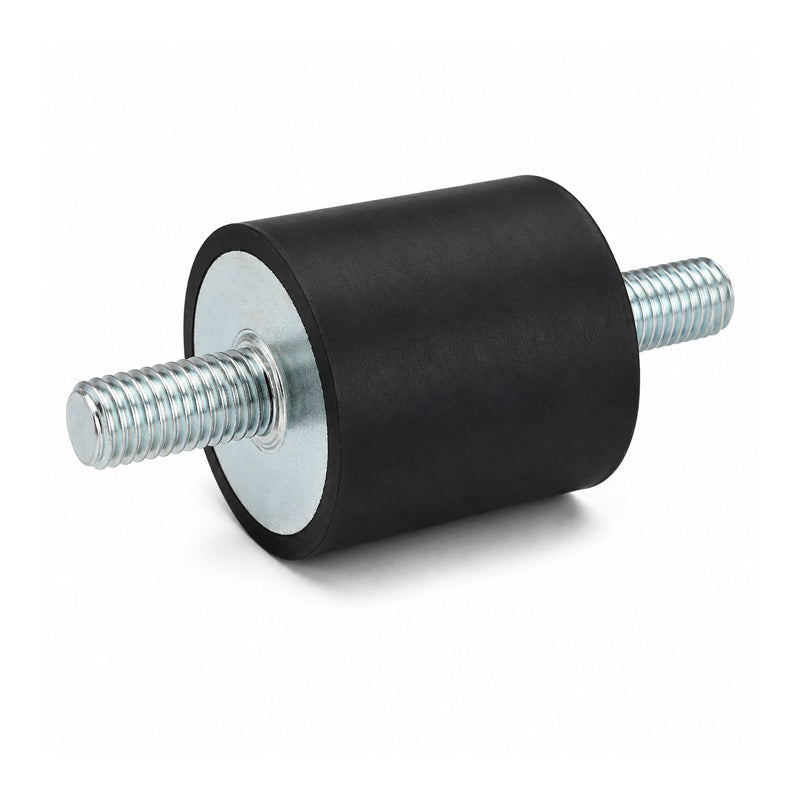

High-Performance Male/Male Anti-Vibration Bobbin 30x40mm M8 Threads

High-Performance Male/Male Anti-Vibration Bobbin 30x40mm M8 Threads
$9.73 ex VAT
$9.73 ex VAT
Sale Sold out

In stock

Price Break
4+ $6.51
9+ $6.15
14+ $6.07
19+ $6.00
49+ $5.93
74+ $5.85
99+ $5.49
199+ $5.41
249+ $5.34
499+ $5.27
999+ $5.12

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M8
Outside Diameter:
30mm
Length:
40mm
Material:
Bright Zinc Plated Steel
Overall Length:
86mm
Technical
D 30mm
D1 M8
D2 M8
L 40mm
L1 23mm
L2 23mm
Deflection at Max Compressive Load 4.2mm
Deflection at Max Sheer Load 7.5mm
Max Compressive Load 41 kg
Max Sheer Load 19.5 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.07 kg
