• High-Performance Male/Male Anti-Vibration Bobbin 40x40mm M8 Threads
1 1

SKU: 710-404055

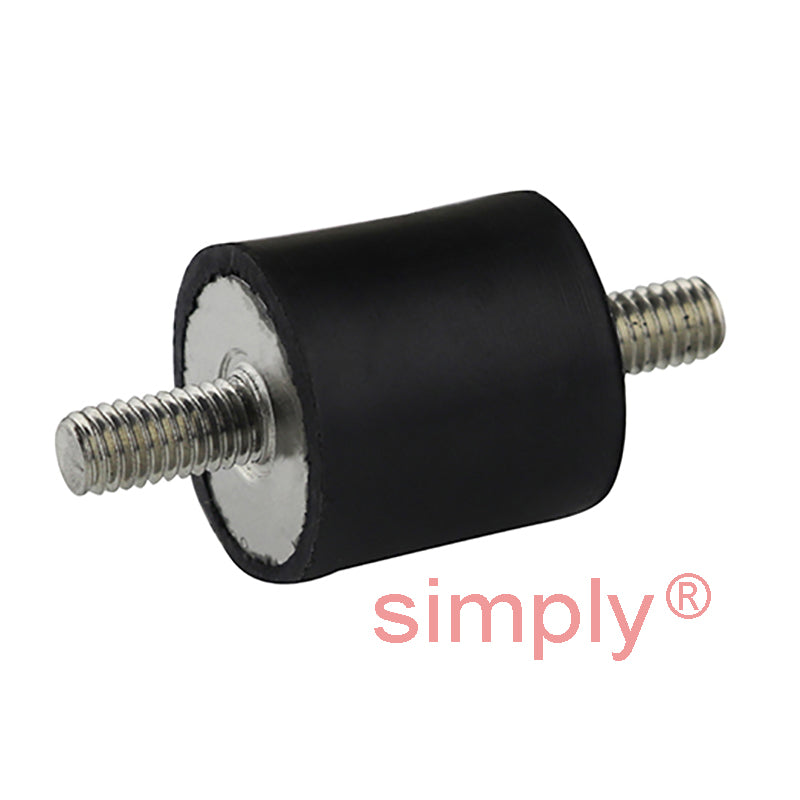

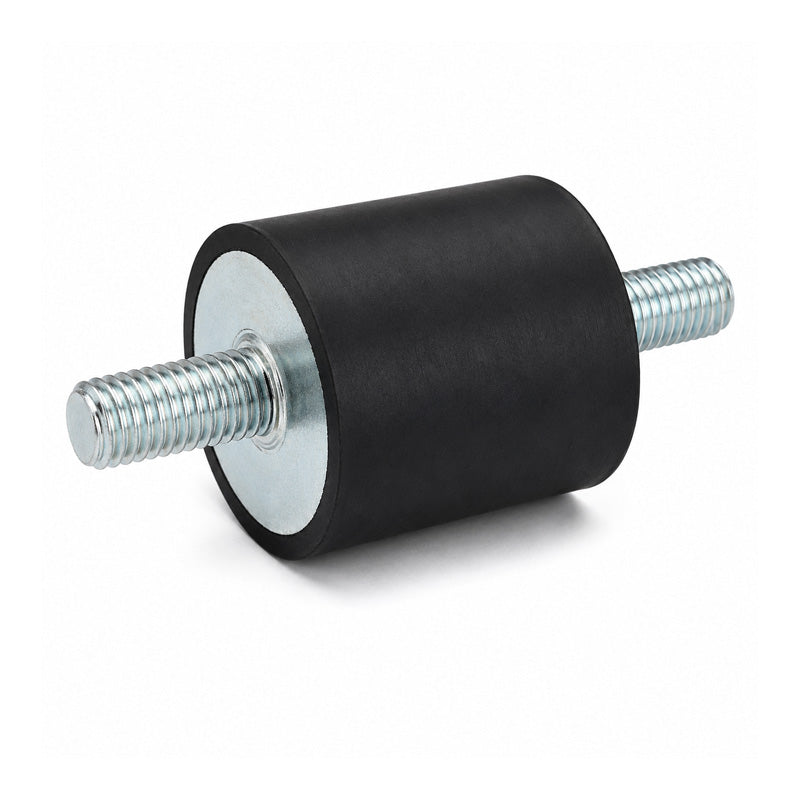

High-Performance Male/Male Anti-Vibration Bobbin 40x40mm M8 Threads

High-Performance Male/Male Anti-Vibration Bobbin 40x40mm M8 Threads
$9.66 ex VAT
$9.66 ex VAT
Sale Sold out

In stock

Price Break
4+ $6.47
9+ $6.11
14+ $6.03
19+ $5.96
49+ $5.89
74+ $5.82
99+ $5.45
199+ $5.38
249+ $5.31
499+ $5.23
999+ $5.09

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M8
Outside Diameter:
40mm
Length:
40mm
Material:
Bright Zinc Plated Steel
Overall Length:
86mm
Technical
D 40mm
D1 M8
D2 M8
L 40mm
L1 23mm
L2 23mm
Deflection at Max Compressive Load 5.4mm
Deflection at Max Sheer Load 10.8mm
Max Compressive Load 75.2 kg
Max Sheer Load 35.1 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.11 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
