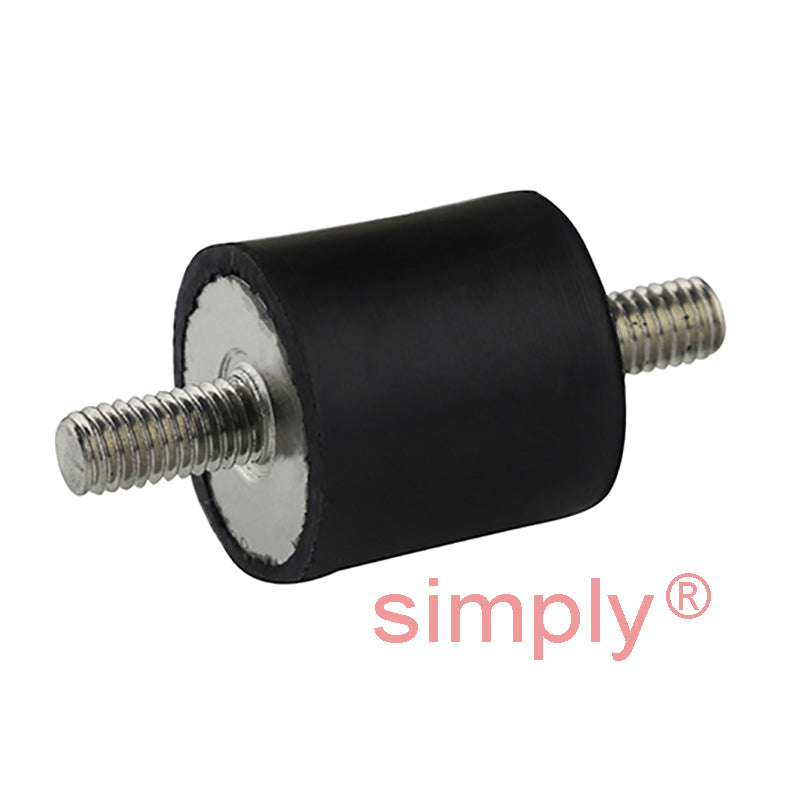

High-Performance Male/Male Anti-Vibration Bobbin 50x25mm M10 Threads

Name: High-Performance Male/Male Anti-Vibration Bobbin 50x25mm M10 Threads
Brand: Simply AV Mounts
SKU: 710-50251055
Price: 11.88 USD
Availability: InStock

$11.88 ex VAT

Sale Sold out

In stock

Price Break

4+ $7.96

9+ $7.51

14+ $7.42

19+ $7.33

49+ $7.24

74+ $7.15

99+ $6.71

199+ $6.62

249+ $6.53

499+ $6.44

999+ $6.26

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 50mm
Length:: 25mm
Material:: Bright Zinc Plated Steel
Overall Length:: 81mm

Technical

D	50mm
D1	M10
D2	M10
L	25mm
L1	28mm
L2	28mm
Deflection at Max Compressive Load	3.2mm
Deflection at Max Sheer Load	6.3mm
Max Compressive Load	190.5 kg
Max Sheer Load	54.2 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.15 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
