• High-Performance Male/Male Anti-Vibration Bobbin 50x40mm M10 Threads
1 1

SKU: 710-504055

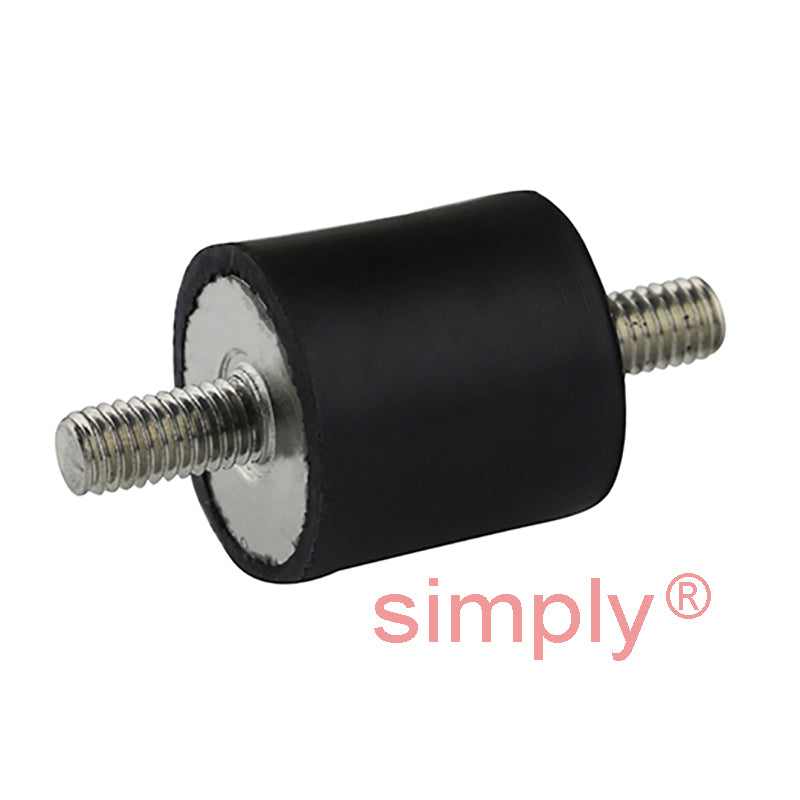

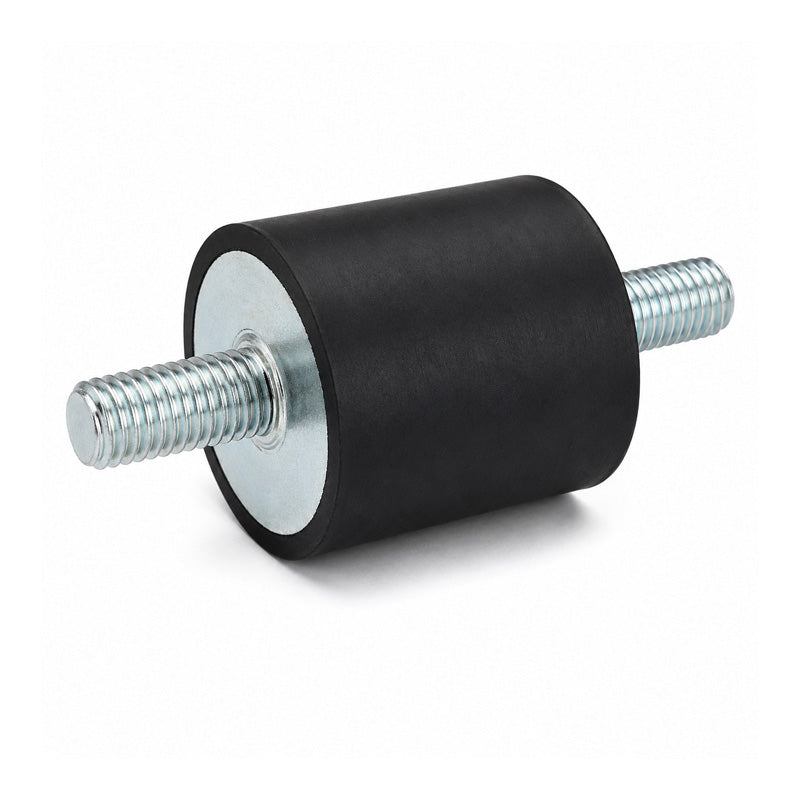

High-Performance Male/Male Anti-Vibration Bobbin 50x40mm M10 Threads

High-Performance Male/Male Anti-Vibration Bobbin 50x40mm M10 Threads
$13.54 ex VAT
$13.54 ex VAT
Sale Sold out

In stock

Price Break
4+ $9.07
9+ $8.56
14+ $8.46
19+ $8.36
49+ $8.25
74+ $8.15
99+ $7.64
199+ $7.54
249+ $7.44
499+ $7.34
999+ $7.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M10
Outside Diameter:
50mm
Length:
40mm
Material:
Bright Zinc Plated Steel
Overall Length:
96mm
Technical
D 50mm
D1 M10
D2 M10
L 40mm
L1 28mm
L2 28mm
Deflection at Max Compressive Load 5.4mm
Deflection at Max Sheer Load 10.8mm
Max Compressive Load 145 kg
Max Sheer Load 54.2 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.22 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
