• High-Performance Male/Male Anti-Vibration Bobbin 60x40mm M10 Threads
1 1

SKU: 710-604055

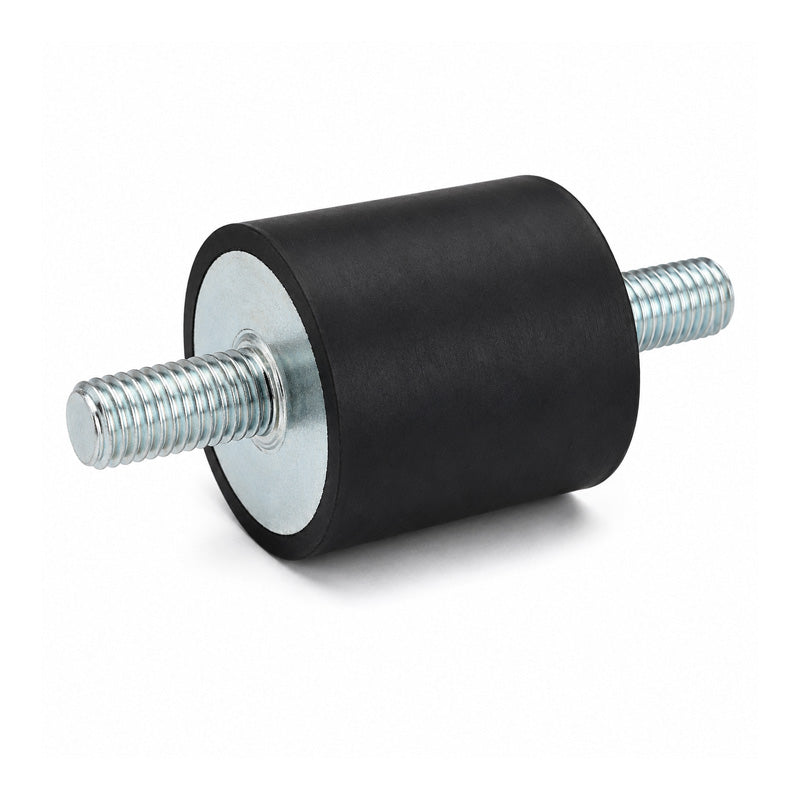

High-Performance Male/Male Anti-Vibration Bobbin 60x40mm M10 Threads

High-Performance Male/Male Anti-Vibration Bobbin 60x40mm M10 Threads
$16.70 ex VAT
$16.70 ex VAT
Sale Sold out

In stock

Price Break
4+ $11.19
9+ $10.56
14+ $10.43
19+ $10.31
49+ $10.18
74+ $10.06
99+ $9.43
199+ $9.30
249+ $9.18
499+ $9.05
999+ $8.80

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M10
Outside Diameter:
60mm
Length:
40mm
Material:
Bright Zinc Plated Steel
Overall Length:
96mm
Technical
D 60mm
D1 M10
D2 M10
L 40mm
L1 28mm
L2 28mm
Deflection at Max Compressive Load 5.4mm
Deflection at Max Sheer Load 10.8mm
Max Compressive Load 176 kg
Max Sheer Load 54.2 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.21 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
