• High-Performance Male/Male Anti-Vibration Bobbin 75x50mm M12 Threads
1 1

SKU: 710-755055

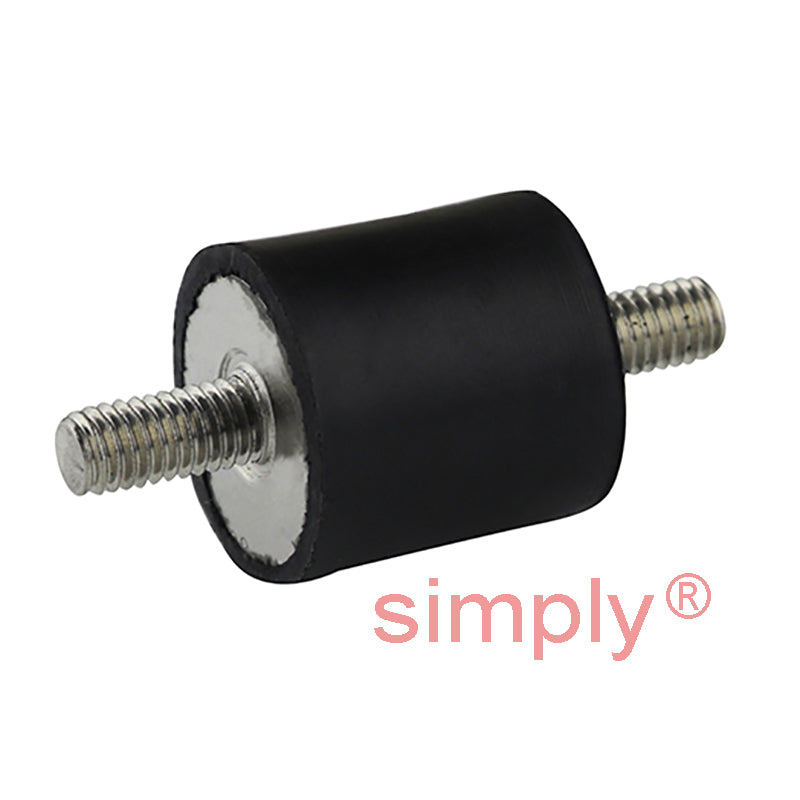

High-Performance Male/Male Anti-Vibration Bobbin 75x50mm M12 Threads

High-Performance Male/Male Anti-Vibration Bobbin 75x50mm M12 Threads
$21.60 ex VAT
$21.60 ex VAT
Sale Sold out

In stock

Price Break
4+ $14.47
9+ $13.66
14+ $13.49
19+ $13.33
49+ $13.17
74+ $13.01
99+ $12.19
199+ $12.03
249+ $11.87
499+ $11.71
999+ $11.38

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M12
Outside Diameter:
75mm
Length:
50mm
Material:
Bright Zinc Plated Steel
Overall Length:
124mm
Technical
D 75mm
D1 M12
D2 M12
L 50mm
L1 37mm
L2 37mm
Deflection at Max Compressive Load 6.5mm
Deflection at Max Sheer Load 13.2mm
Max Compressive Load 341 kg
Max Sheer Load 122 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.49 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+steel+nut">M12 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M12+set+screw">M12 Click Here</a>
