SKU: 711-302055A2

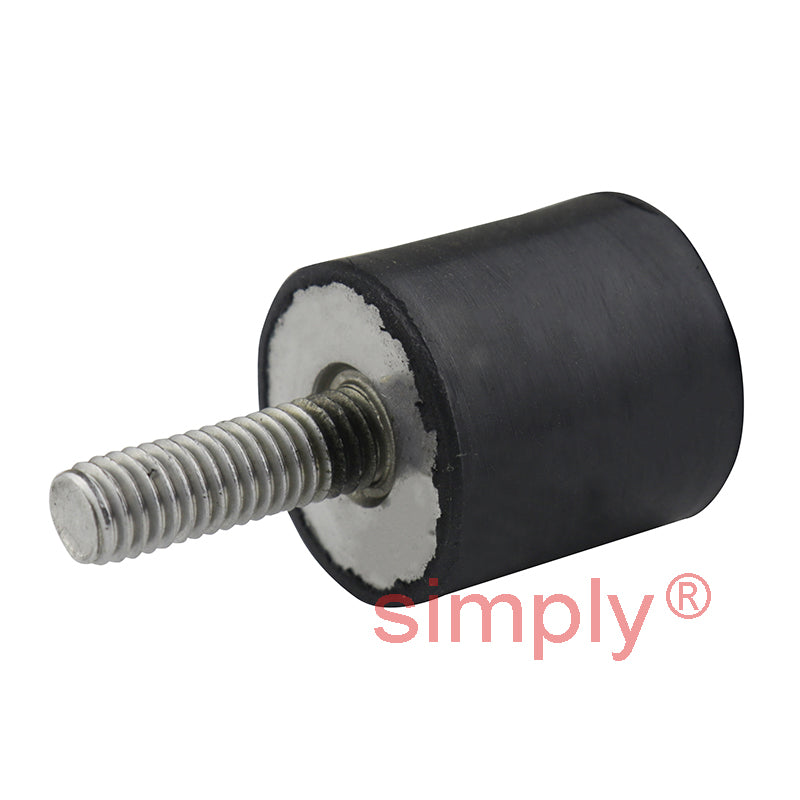

High-Performance 304 Stainless Steel Male/Female Anti-Vibration Bobbin 30x20mm M8 Threads

Name: High-Performance 304 Stainless Steel Male/Female Anti-Vibration Bobbin 30x20mm M8 Threads
Brand: Simply AV Mounts
SKU: 711-302055A2
Price: 12.16 USD
Availability: InStock

$12.16 ex VAT

Sale Sold out

In stock

Price Break

4+ $8.15

9+ $7.69

14+ $7.60

19+ $7.51

49+ $7.41

74+ $7.32

99+ $6.87

199+ $6.77

249+ $6.68

499+ $6.59

999+ $6.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M8
Outside Diameter:: 30mm
Length:: 20mm
Material:: Stainless Steel
Overall Length:: 43mm

Technical

D	30mm
D1	M8
D2	M8
L	20mm
L1	23mm
L2	8mm
Deflection at Max Compressive Load	57.5mm
Deflection at Max Sheer Load	2.4mm
Max Compressive Load	22.4 kg
Max Sheer Load	4.8 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.05 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
