SKU: 711-30300655

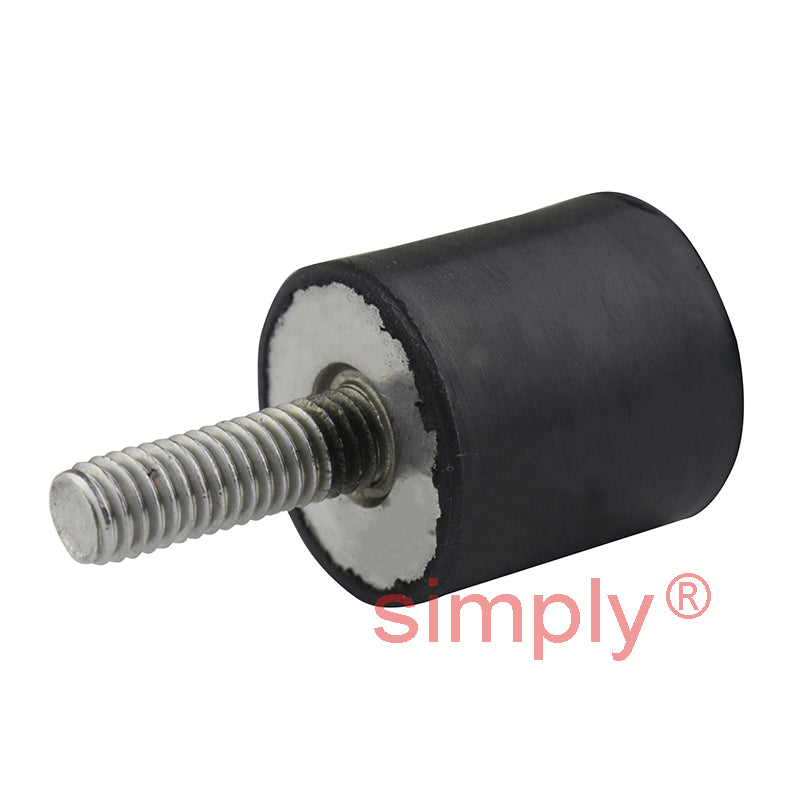

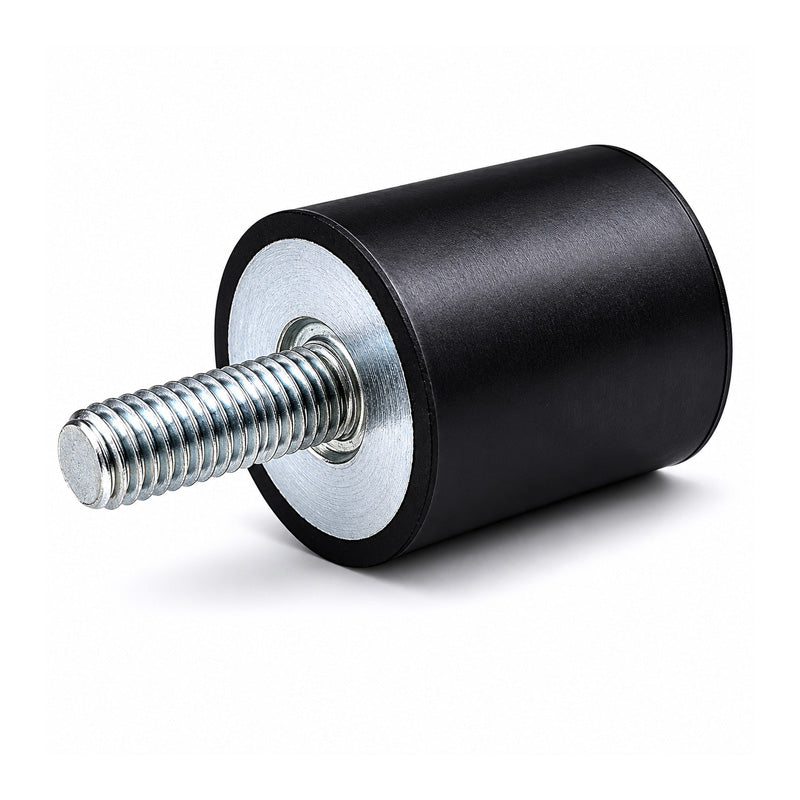

High-Performance Male/Female Anti-Vibration Bobbin 30x30mm M6 Threads

Name: High-Performance Male/Female Anti-Vibration Bobbin 30x30mm M6 Threads
Brand: Simply AV Mounts
SKU: 711-30300655
Price: 7.79 USD
Availability: InStock

$7.79 ex VAT

Sale Sold out

In stock

Price Break

4+ $5.21

9+ $4.92

14+ $4.86

19+ $4.80

49+ $4.74

74+ $4.68

99+ $4.39

199+ $4.33

249+ $4.27

499+ $4.22

999+ $4.10

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M6
Outside Diameter:: 30mm
Length:: 30mm
Material:: Bright Zinc Plated Steel
Overall Length:: 48mm

Technical

D	30mm
D1	M6
D2	M6
L	30mm
L1	18mm
L2	6mm
Deflection at Max Compressive Load	42.8mm
Deflection at Max Sheer Load	3.9mm
Max Compressive Load	19.5 kg
Max Sheer Load	7.8 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.04 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+steel+nut">M6 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+set+screw">M6 Click Here</a>
