• High-Performance Male/Female Anti-Vibration Bobbin 40x30mm M8 Threads
1 1

SKU: 711-403055

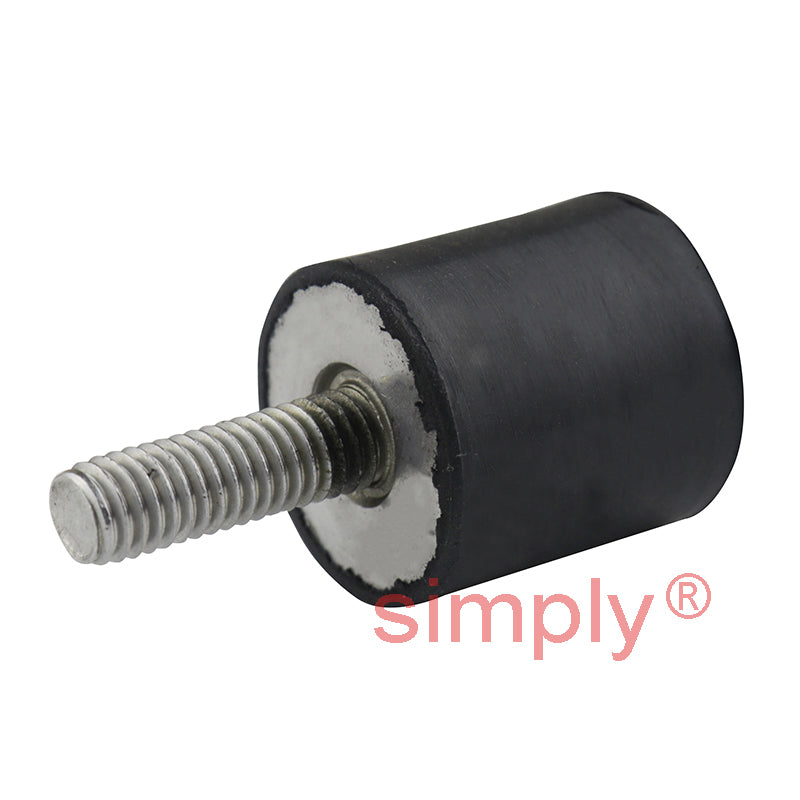

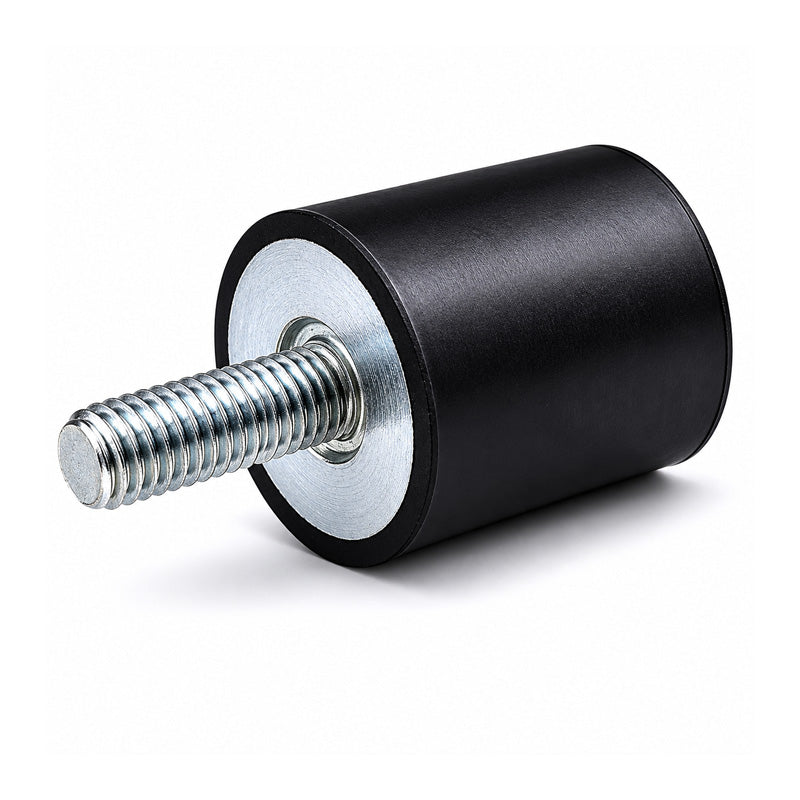

High-Performance Male/Female Anti-Vibration Bobbin 40x30mm M8 Threads

High-Performance Male/Female Anti-Vibration Bobbin 40x30mm M8 Threads
$9.22 ex VAT
$9.22 ex VAT
Sale Sold out

In stock

Price Break
4+ $6.18
9+ $5.83
14+ $5.76
19+ $5.69
49+ $5.62
74+ $5.55
99+ $5.20
199+ $5.13
249+ $5.07
499+ $5.00
999+ $4.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M8
Outside Diameter:
40mm
Length:
30mm
Material:
Bright Zinc Plated Steel
Overall Length:
53mm
Technical
D 40mm
D1 M8
D2 M8
L 30mm
L1 23mm
L2 8mm
Deflection at Max Compressive Load 79.8mm
Deflection at Max Sheer Load 3.9mm
Max Compressive Load 36.7 kg
Max Sheer Load 7.8 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.09 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
