• High-Performance Male/Female Anti-Vibration Bobbin 50x20mm M10 Threads
1 1

SKU: 711-502055

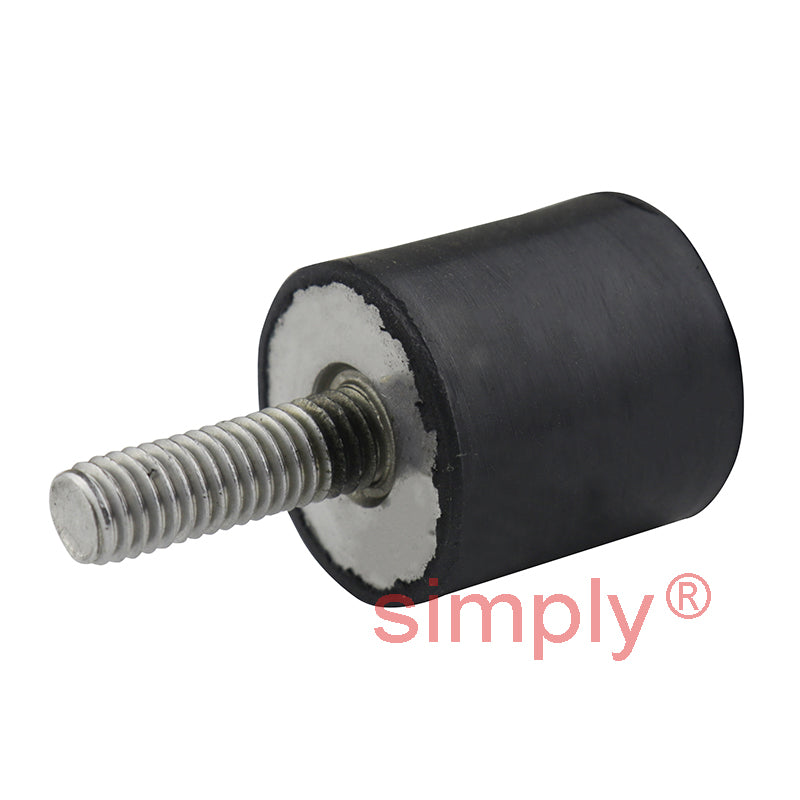

High-Performance Male/Female Anti-Vibration Bobbin 50x20mm M10 Threads

High-Performance Male/Female Anti-Vibration Bobbin 50x20mm M10 Threads
$9.73 ex VAT
$9.73 ex VAT
Sale Sold out

In stock

Price Break
4+ $6.38
9+ $6.02
14+ $5.95
19+ $5.88
49+ $5.81
74+ $5.74
99+ $5.38
199+ $5.31
249+ $5.24
499+ $5.16
999+ $5.02

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M10
Outside Diameter:
50mm
Length:
20mm
Material:
Bright Zinc Plated Steel
Overall Length:
46mm
Technical
D 50mm
D1 M10
D2 M10
L 20mm
L1 26mm
L2 11mm
Deflection at Max Compressive Load 103mm
Deflection at Max Sheer Load 5.5mm
Max Compressive Load 42 kg
Max Sheer Load 8.5 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.15 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
