SKU: 711-50301055

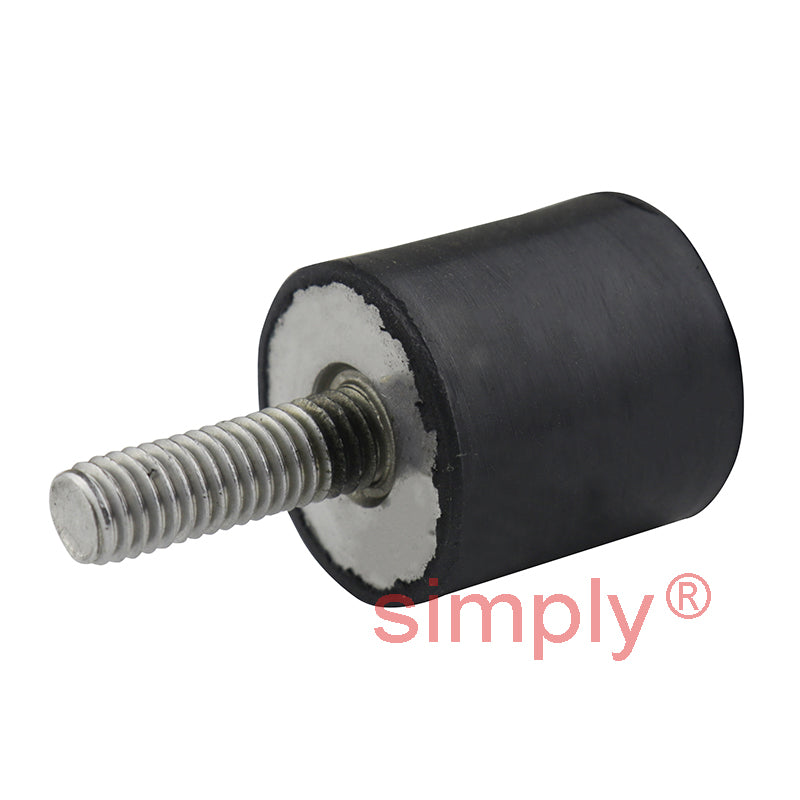

High-Performance Male/Female Anti-Vibration Bobbin 50x30mm M10 Threads

Name: High-Performance Male/Female Anti-Vibration Bobbin 50x30mm M10 Threads
Brand: Simply AV Mounts
SKU: 711-50301055
Price: 10.40 USD
Availability: InStock

$10.40 ex VAT

Sale Sold out

In stock

Price Break

4+ $6.97

9+ $6.58

14+ $6.50

19+ $6.42

49+ $6.35

74+ $6.27

99+ $5.88

199+ $5.80

249+ $5.72

499+ $5.64

999+ $5.48

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 50mm
Length:: 30mm
Material:: Bright Zinc Plated Steel
Overall Length:: 57mm

Technical

D	50mm
D1	M10
D2	M10
L	30mm
L1	27mm
L2	11mm
Deflection at Max Compressive Load	157.7mm
Deflection at Max Sheer Load	3.9mm
Max Compressive Load	54.1 kg
Max Sheer Load	7.8 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.14 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
