• High-Performance Male/Female Anti-Vibration Bobbin 50x35mm M10 Threads
1 1

SKU: 711-50351055

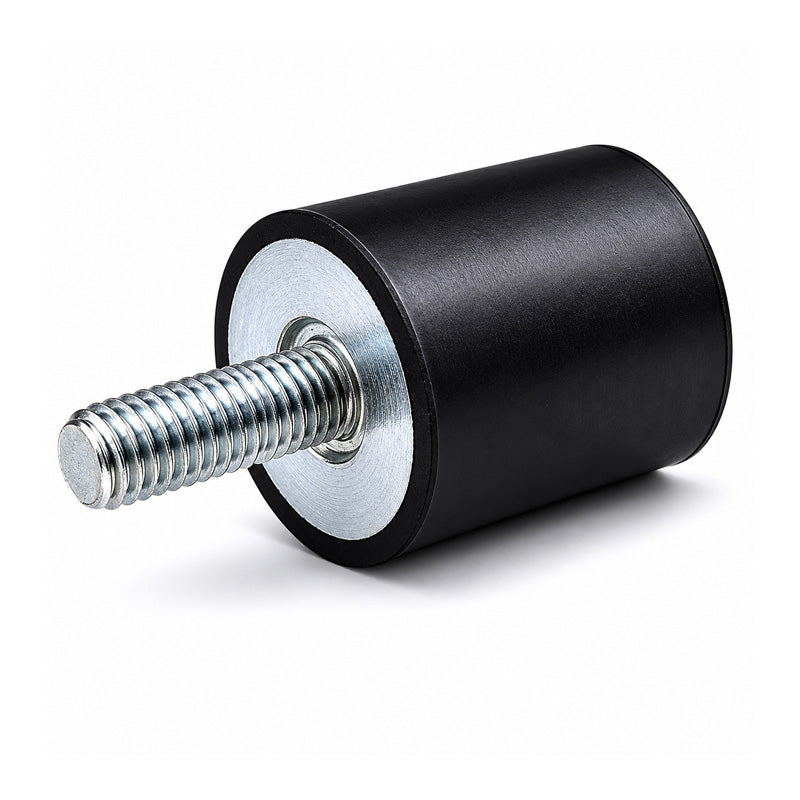

High-Performance Male/Female Anti-Vibration Bobbin 50x35mm M10 Threads

High-Performance Male/Female Anti-Vibration Bobbin 50x35mm M10 Threads
$10.82 ex VAT
$10.82 ex VAT
Sale Sold out

In stock

Price Break
4+ $7.25
9+ $6.84
14+ $6.76
19+ $6.68
49+ $6.59
74+ $6.51
99+ $6.11
199+ $6.02
249+ $5.94
499+ $5.86
999+ $5.70

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M10
Outside Diameter:
50mm
Length:
35mm
Material:
Bright Zinc Plated Steel
Overall Length:
62mm
Technical
D 50mm
D1 M10
D2 M10
L 35mm
L1 27mm
L2 11mm
Deflection at Max Compressive Load 193.6mm
Deflection at Max Sheer Load 3.9mm
Max Compressive Load 58.4 kg
Max Sheer Load 7.8 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.17 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
