SKU: 711-504055A2

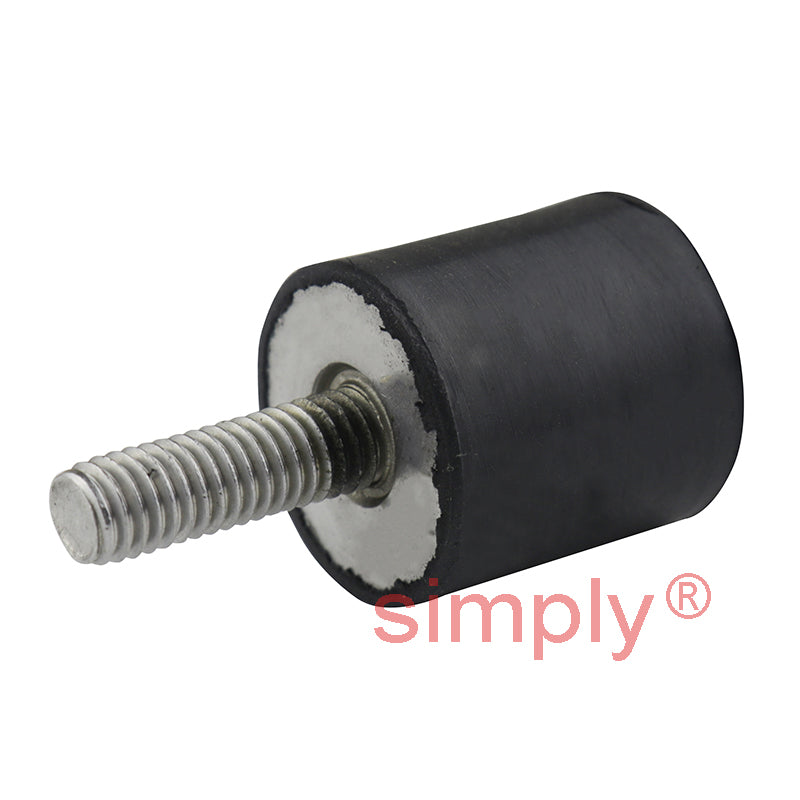

High-Performance 304 Stainless Steel Male/Female Anti-Vibration Bobbin 50x40mm M10 Threads

Name: High-Performance 304 Stainless Steel Male/Female Anti-Vibration Bobbin 50x40mm M10 Threads
Brand: Simply AV Mounts
SKU: 711-504055A2
Price: 17.18 USD
Availability: InStock

$17.18 ex VAT

Sale Sold out

In stock

Price Break

4+ $11.51

9+ $10.86

14+ $10.73

19+ $10.60

49+ $10.47

74+ $10.34

99+ $9.70

199+ $9.57

249+ $9.44

499+ $9.31

999+ $9.05

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 50mm
Length:: 40mm
Material:: Stainless Steel
Overall Length:: 68mm

Technical

D	50mm
D1	M10
D2	M10
L	40mm
L1	28mm
L2	11mm
Deflection at Max Compressive Load	115mm
Deflection at Max Sheer Load	6.2mm
Max Compressive Load	49 kg
Max Sheer Load	9.5 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.17 kg
Nut	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screw	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
