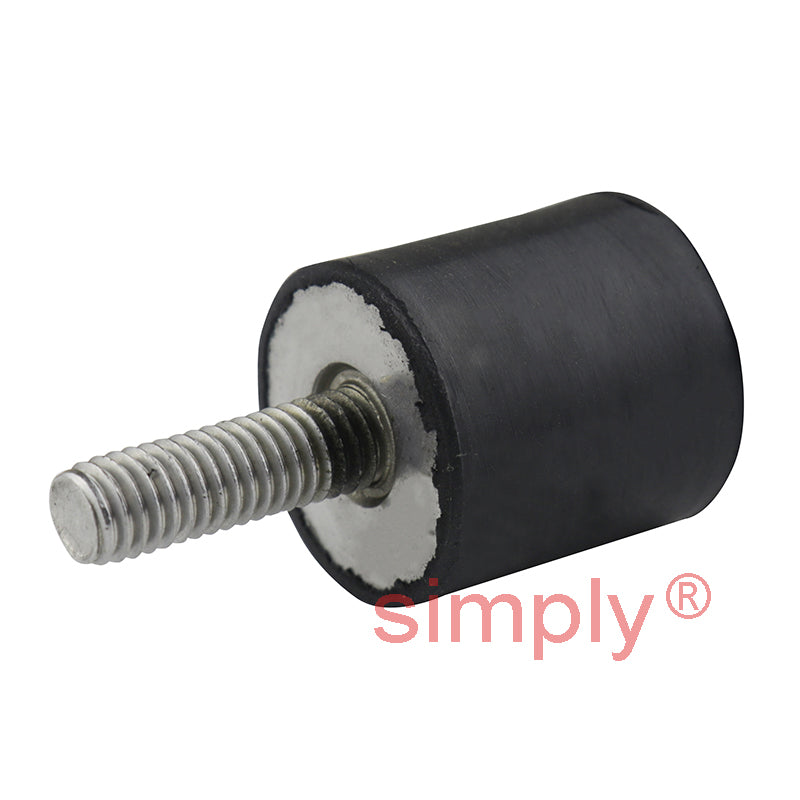

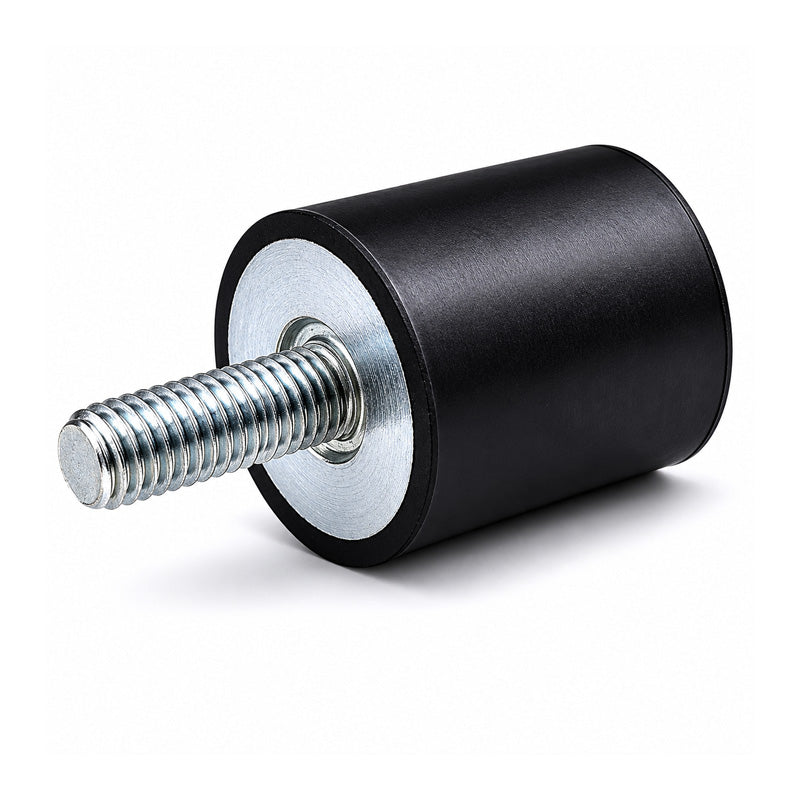

• High-Performance Male/Female Anti-Vibration Bobbin 50x50mm M10 Threads
1 1

SKU: 711-505055

High-Performance Male/Female Anti-Vibration Bobbin 50x50mm M10 Threads

High-Performance Male/Female Anti-Vibration Bobbin 50x50mm M10 Threads
$16.36 ex VAT
$16.36 ex VAT
Sale Sold out

In stock

Price Break
4+ $10.96
9+ $10.34
14+ $10.22
19+ $10.10
49+ $9.97
74+ $9.85
99+ $9.23
199+ $9.11
249+ $8.99
499+ $8.86
999+ $8.62

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
Simply AV Mounts
Thread Size:
M10
Outside Diameter:
50mm
Length:
50mm
Material:
Bright Zinc Plated Steel
Overall Length:
76mm
Technical
D 50mm
D1 M10
D2 M10
L 50mm
L1 26mm
L2 12mm
Deflection at Max Compressive Load 124mm
Deflection at Max Sheer Load 6.9mm
Max Compressive Load 54.2 kg
Max Sheer Load 10.8 kg
Temperature Range -30 deg C to +80 deg C
Hardness 55 Shore A Hardness
Weight 0.23 kg
Nuts <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
