SKU: 712-252055A2

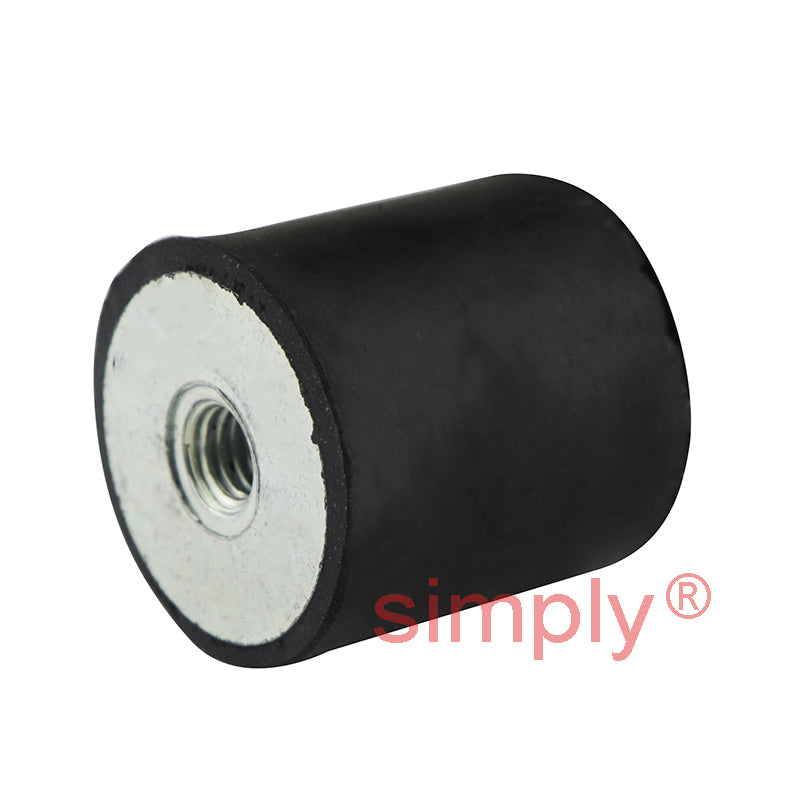

High-Performance 304 Stainless Steel Female/Female Anti-Vibration Bobbin 25x20mm M6 Threads

Name: High-Performance 304 Stainless Steel Female/Female Anti-Vibration Bobbin 25x20mm M6 Threads
Brand: Simply AV Mounts
SKU: 712-252055A2
Price: 10.56 USD
Availability: InStock

$10.56 ex VAT

Sale Sold out

In stock

Price Break

4+ $7.08

9+ $6.68

14+ $6.60

19+ $6.52

49+ $6.44

74+ $6.36

99+ $5.96

199+ $5.88

249+ $5.81

499+ $5.73

999+ $5.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M6
Outside Diameter:: 25mm
Length:: 20mm
Material:: Stainless Steel

Technical

D	25mm
D1	M6
D2	M6
L	20mm
L1	6mm
L2	6mm
Deflection at Max Compressive Load	2.4mm
Deflection at Max Sheer Load	4.8mm
Max Compressive Load	25.5 kg
Max Sheer Load	8.1 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.03 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+steel+nut">M6 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M6+set+screw">M6 Click Here</a>
