SKU: 712-303055A2

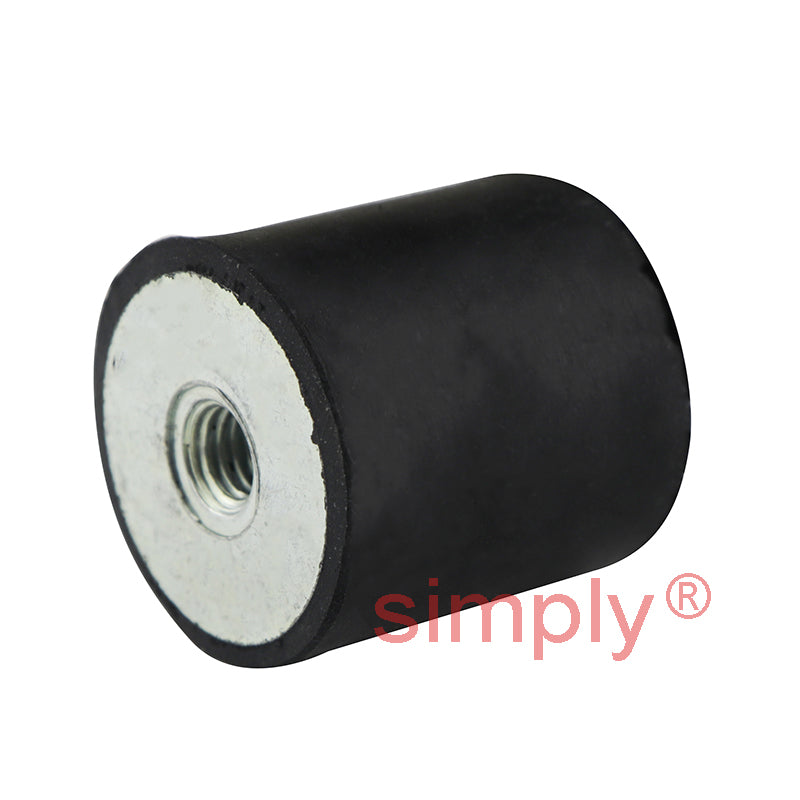

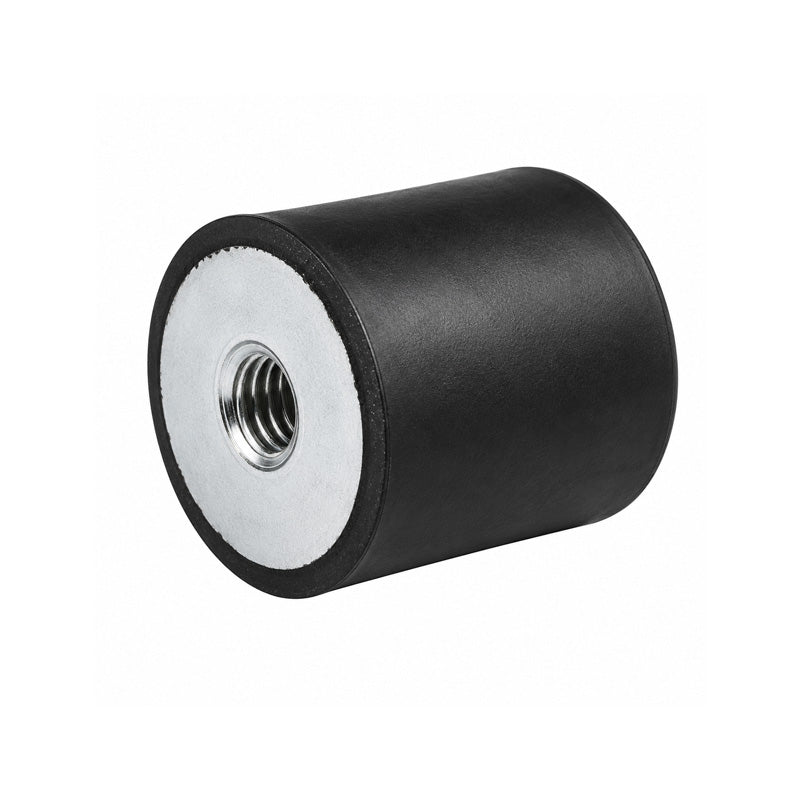

High-Performance 304 Stainless Steel Female/Female Anti-Vibration Bobbin 30x30mm M8 Threads

Name: High-Performance 304 Stainless Steel Female/Female Anti-Vibration Bobbin 30x30mm M8 Threads
Brand: Simply AV Mounts
SKU: 712-303055A2
Price: 13.01 USD
Availability: InStock

$13.01 ex VAT

Sale Sold out

In stock

Price Break

4+ $8.71

9+ $8.22

14+ $8.13

19+ $8.03

49+ $7.93

74+ $7.83

99+ $7.34

199+ $7.24

249+ $7.15

499+ $7.05

999+ $6.85

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M8
Outside Diameter:: 30mm
Length:: 30mm
Material:: Stainless Steel

Technical

D	30mm
D1	M8
D2	M8
L	30mm
L1	8mm
L2	8mm
Deflection at Max Compressive Load	3.9mm
Deflection at Max Sheer Load	4.8mm
Max Compressive Load	47.1 kg
Max Sheer Load	21.4 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.06 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
