SKU: 712-304055

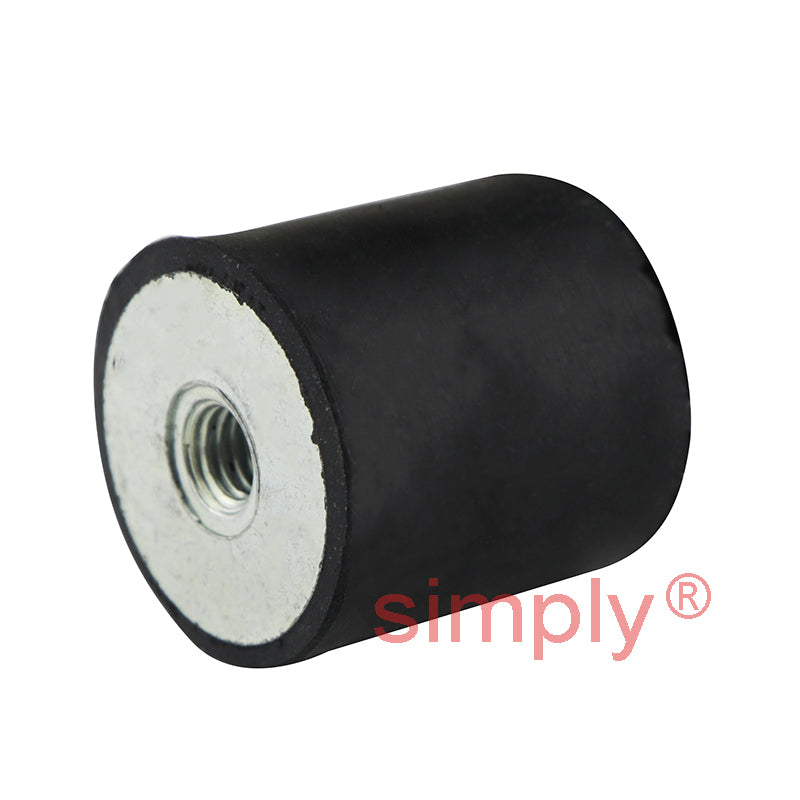

High-Performance Female/Female Anti-Vibration Bobbin 30x40mm M8 Threads

Name: High-Performance Female/Female Anti-Vibration Bobbin 30x40mm M8 Threads
Brand: Simply AV Mounts
SKU: 712-304055
Price: 8.12 USD
Availability: InStock

$8.12 ex VAT

Sale Sold out

In stock

Price Break

4+ $5.44

9+ $5.14

14+ $5.07

19+ $5.01

49+ $4.95

74+ $4.89

99+ $4.59

199+ $4.52

249+ $4.46

499+ $4.40

999+ $4.28

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M8
Outside Diameter:: 30mm
Length:: 40mm
Material:: Bright Zinc Plated Steel

Technical

D	30mm
D1	M8
D2	M8
L	40mm
L1	8mm
L2	8mm
Deflection at Max Compressive Load	3.9mm
Deflection at Max Sheer Load	7.8mm
Max Compressive Load	40.5 kg
Max Sheer Load	19.5 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.05 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
