SKU: 712-40250855

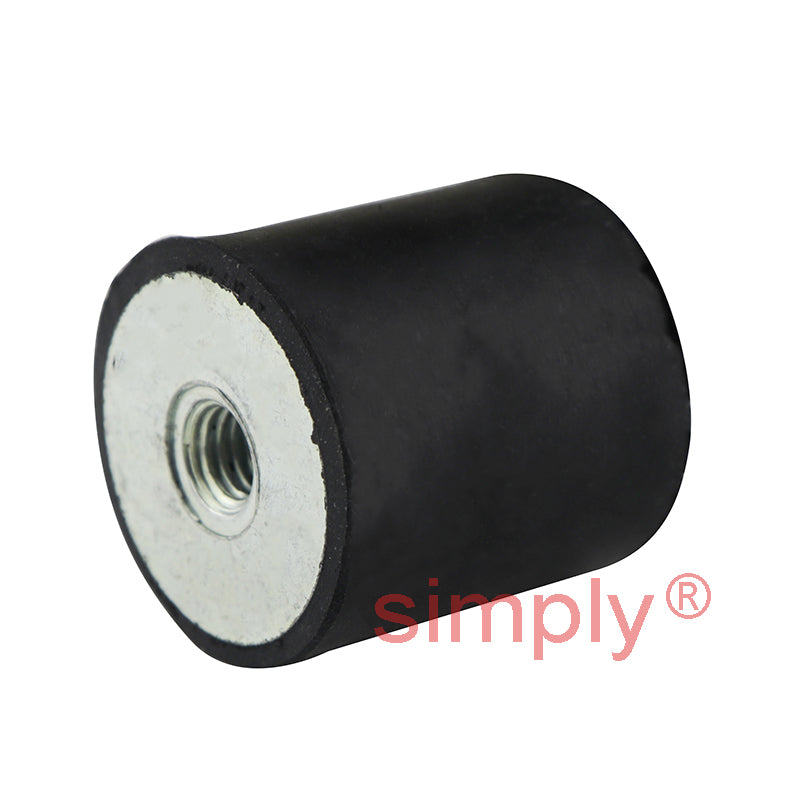

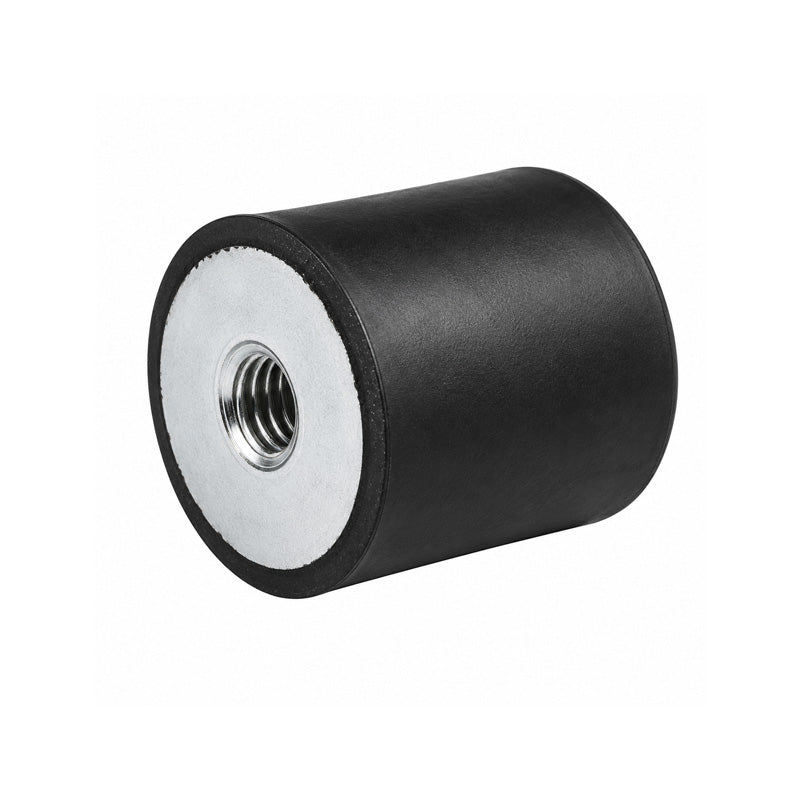

High-Performance Female/Female Anti-Vibration Bobbin 40x25mm M8 Threads

Name: High-Performance Female/Female Anti-Vibration Bobbin 40x25mm M8 Threads
Brand: Simply AV Mounts
SKU: 712-40250855
Price: 9.87 USD
Availability: InStock

$9.87 ex VAT

Sale Sold out

In stock

Price Break

4+ $6.62

9+ $6.24

14+ $6.17

19+ $6.10

49+ $6.02

74+ $5.95

99+ $5.58

199+ $5.50

249+ $5.43

499+ $5.35

999+ $5.20

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M8
Outside Diameter:: 40mm
Length:: 25mm
Material:: Bright Zinc Plated Steel

Technical

D	40mm
D1	M8
D2	M8
L	25mm
L1	8mm
L2	8mm
Deflection at Max Compressive Load	3.2mm
Deflection at Max Sheer Load	6.3mm
Max Compressive Load	72.4 kg
Max Sheer Load	32.4 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.06 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
