SKU: 712-403055

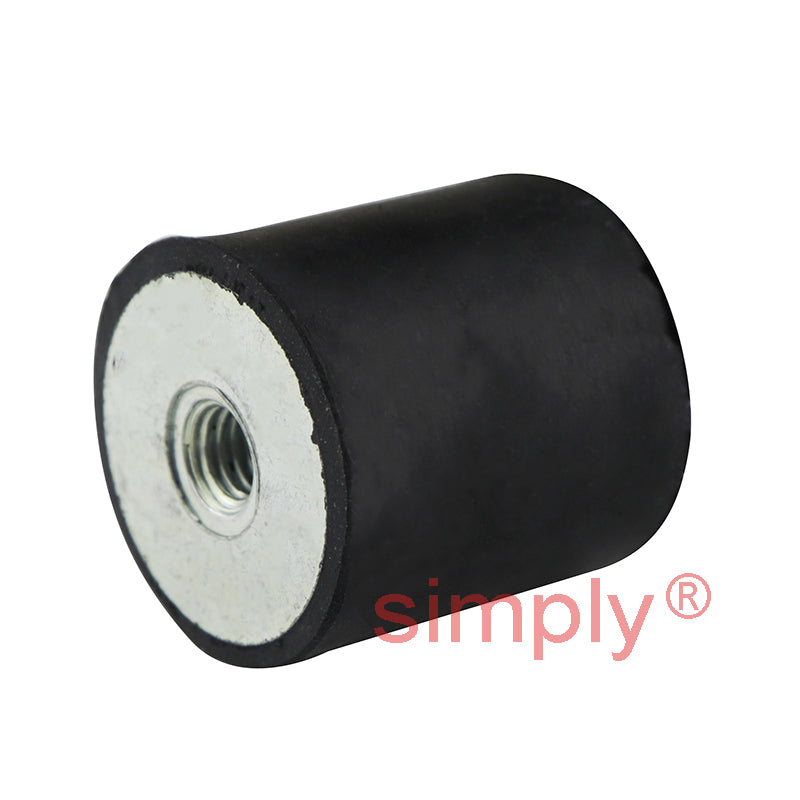

High-Performance Female/Female Anti-Vibration Bobbin 40x30mm M8 Threads

Name: High-Performance Female/Female Anti-Vibration Bobbin 40x30mm M8 Threads
Brand: Simply AV Mounts
SKU: 712-403055
Price: 12.16 USD
Availability: InStock

$12.16 ex VAT

Sale Sold out

In stock

Price Break

4+ $8.15

9+ $7.69

14+ $7.60

19+ $7.51

49+ $7.41

74+ $7.32

99+ $6.87

199+ $6.77

249+ $6.68

499+ $6.59

999+ $6.41

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M8
Outside Diameter:: 40mm
Length:: 30mm
Material:: Bright Zinc Plated Steel

Technical

D	40mm
D1	M8
D2	M8
L	30mm
L1	8mm
L2	8mm
Deflection at Max Compressive Load	3.9mm
Deflection at Max Sheer Load	7.8mm
Max Compressive Load	83.4 kg
Max Sheer Load	38.5 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.09 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
