SKU: 712-40351055

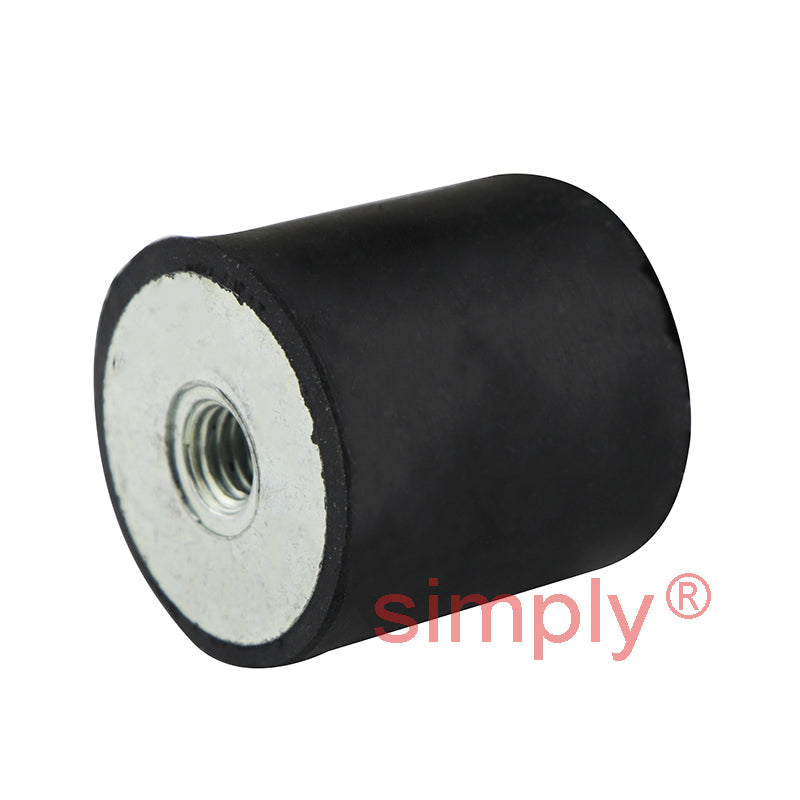

High-Performance Female/Female Anti-Vibration Bobbin 40x35mm M10 Threads

Name: High-Performance Female/Female Anti-Vibration Bobbin 40x35mm M10 Threads
Brand: Simply AV Mounts
SKU: 712-40351055
Price: 10.56 USD
Availability: InStock

$10.56 ex VAT

Sale Sold out

In stock

Price Break

4+ $7.08

9+ $6.68

14+ $6.60

19+ $6.52

49+ $6.44

74+ $6.36

99+ $5.96

199+ $5.88

249+ $5.81

499+ $5.73

999+ $5.57

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 40mm
Length:: 35mm
Material:: Bright Zinc Plated Steel

Technical

D	40mm
D1	M10
D2	M10
L	35mm
L1	10mm
L2	10mm
Deflection at Max Compressive Load	3.2mm
Deflection at Max Sheer Load	6.7mm
Max Compressive Load	78.2 kg
Max Sheer Load	46.7 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.1 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
