SKU: 712-404055A2

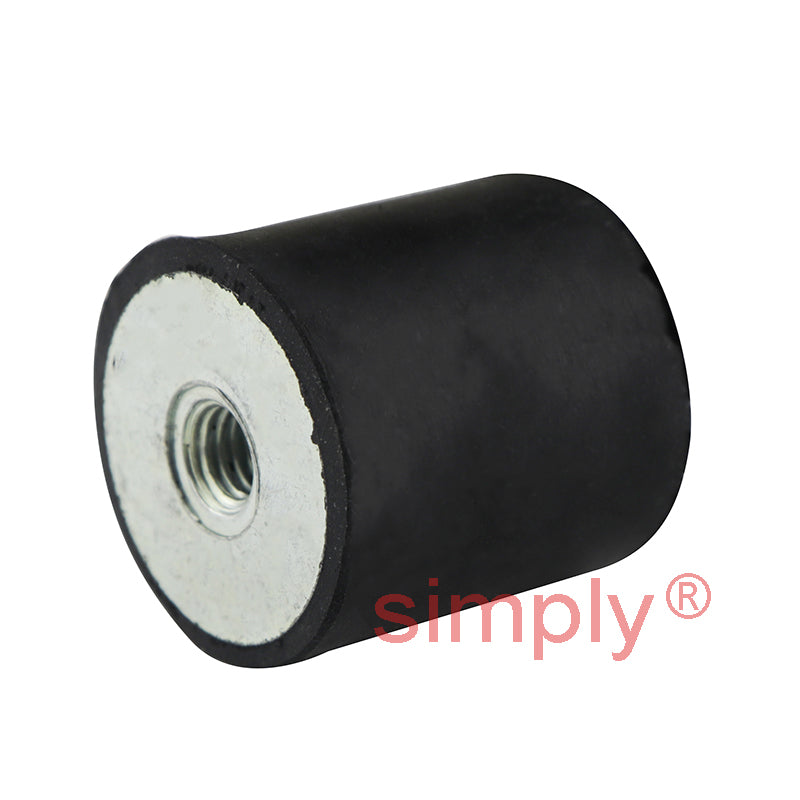

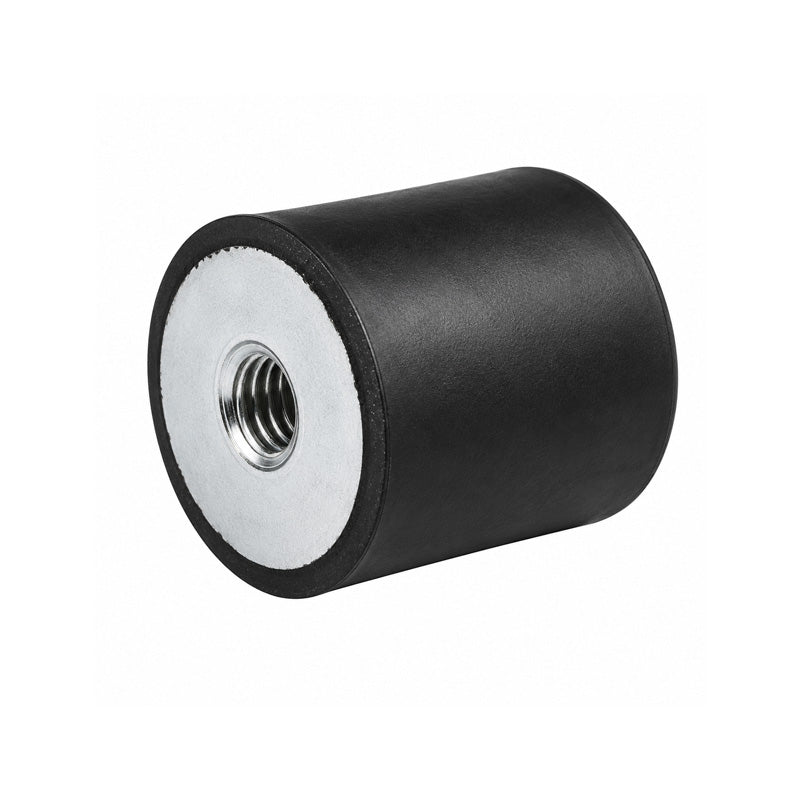

High-Performance 304 Stainless Steel Female/Female Anti-Vibration Bobbin 40x40mm M8 Threads

Name: High-Performance 304 Stainless Steel Female/Female Anti-Vibration Bobbin 40x40mm M8 Threads
Brand: Simply AV Mounts
SKU: 712-404055A2
Price: 16.08 USD
Availability: InStock

$16.08 ex VAT

Sale Sold out

In stock

Price Break

4+ $10.56

9+ $9.96

14+ $9.85

19+ $9.73

49+ $9.61

74+ $9.49

99+ $8.90

199+ $8.78

249+ $8.66

499+ $8.54

999+ $8.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M8
Outside Diameter:: 40mm
Length:: 40mm
Material:: Stainless Steel

Technical

D	40mm
D1	M8
D2	M8
L	40mm
L1	8mm
L2	8mm
Deflection at Max Compressive Load	5.4mm
Deflection at Max Sheer Load	7.8mm
Max Compressive Load	78.9 kg
Max Sheer Load	36.8 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.11 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
