SKU: 712-504055

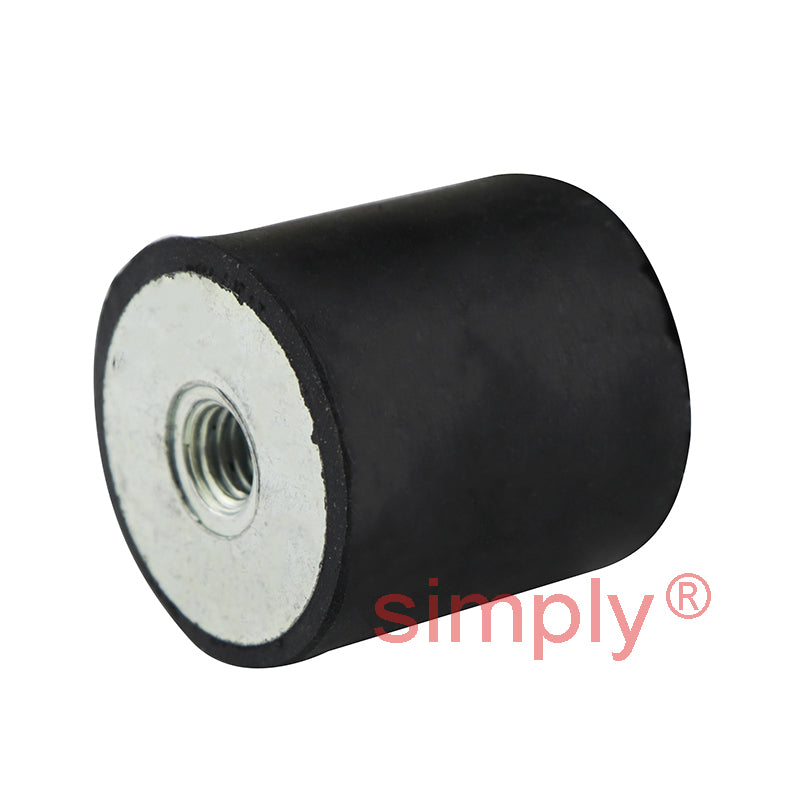

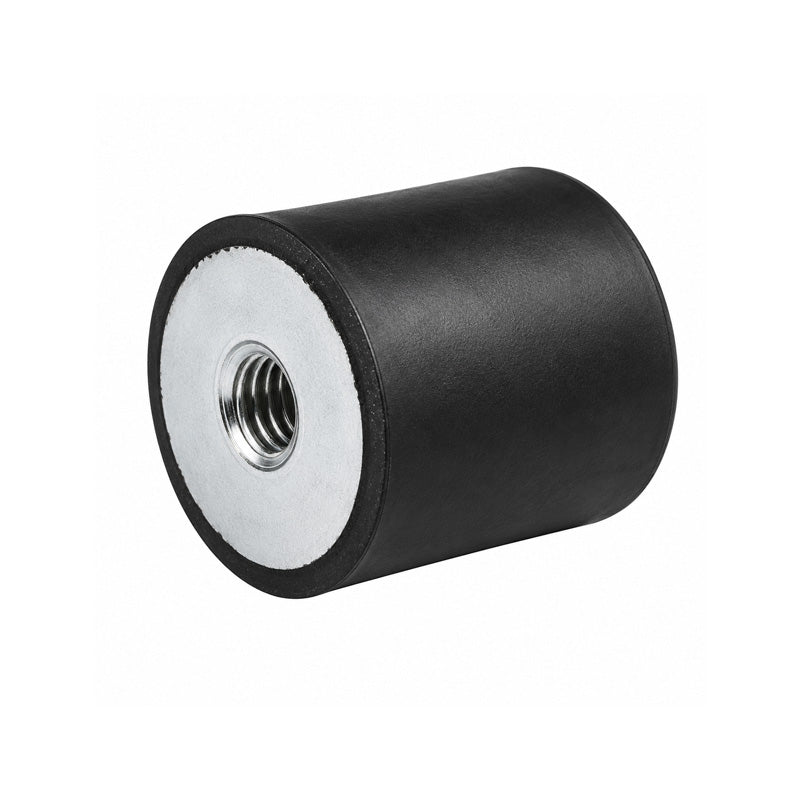

High-Performance Female/Female Anti-Vibration Bobbin 50x40mm M10 Threads

Name: High-Performance Female/Female Anti-Vibration Bobbin 50x40mm M10 Threads
Brand: Simply AV Mounts
SKU: 712-504055
Price: 10.88 USD
Availability: InStock

$10.88 ex VAT

Sale Sold out

In stock

Price Break

4+ $7.29

9+ $6.88

14+ $6.80

19+ $6.71

49+ $6.63

74+ $6.55

99+ $6.14

199+ $6.06

249+ $5.98

499+ $5.90

999+ $5.73

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 50mm
Length:: 40mm
Material:: Bright Zinc Plated Steel

Technical

D	50mm
D1	M10
D2	M10
L	40mm
L1	12mm
L2	12mm
Deflection at Max Compressive Load	2.4mm
Deflection at Max Sheer Load	4.8mm
Max Compressive Load	118 kg
Max Sheer Load	51 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.15 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
