SKU: 712-604055

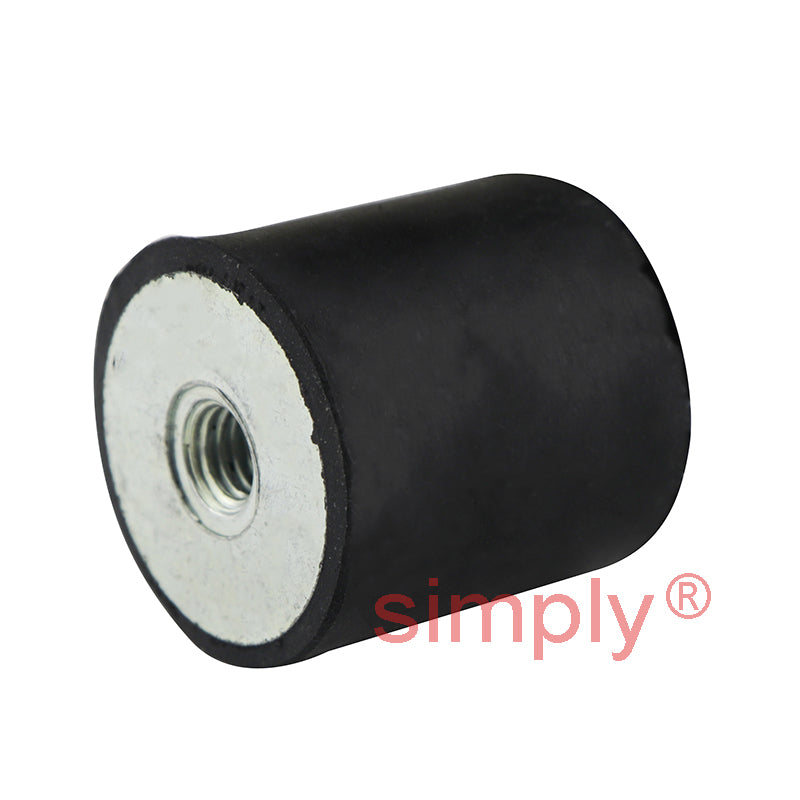

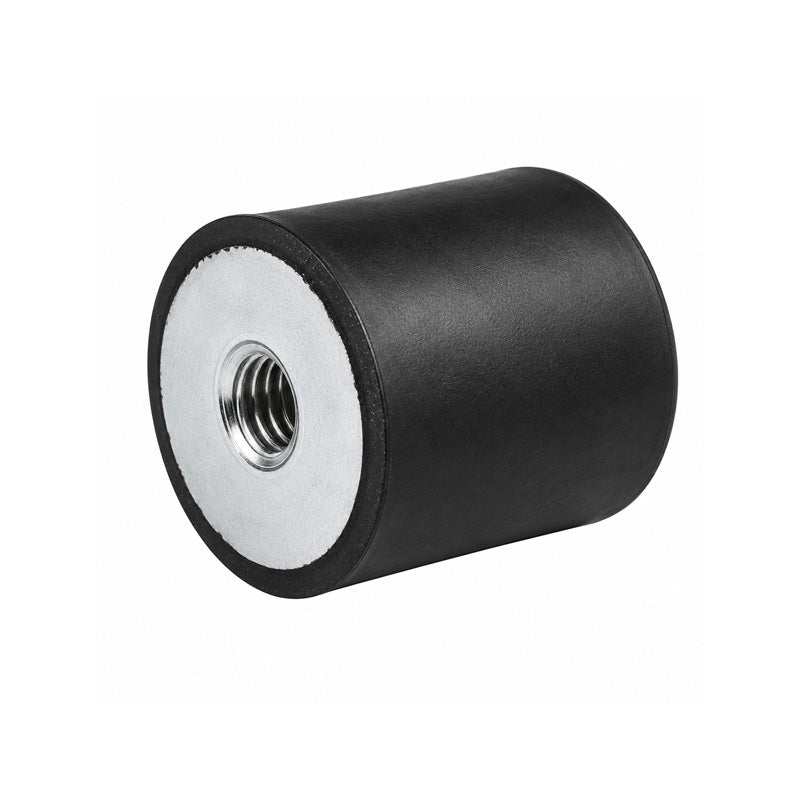

High-Performance Female/Female Anti-Vibration Bobbin 60x40mm M10 Threads

Name: High-Performance Female/Female Anti-Vibration Bobbin 60x40mm M10 Threads
Brand: Simply AV Mounts
SKU: 712-604055
Price: 18.00 USD
Availability: InStock

$18.00 ex VAT

Sale Sold out

In stock

Price Break

4+ $11.82

9+ $11.16

14+ $11.02

19+ $10.89

49+ $10.76

74+ $10.63

99+ $9.96

199+ $9.83

249+ $9.70

499+ $9.56

999+ $9.30

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 60mm
Length:: 40mm
Material:: Bright Zinc Plated Steel

Technical

D	60mm
D1	M10
D2	M10
L	40mm
L1	12mm
L2	12mm
Deflection at Max Compressive Load	5.4mm
Deflection at Max Sheer Load	10.8mm
Max Compressive Load	176 kg
Max Sheer Load	54.2 kg
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.26 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
