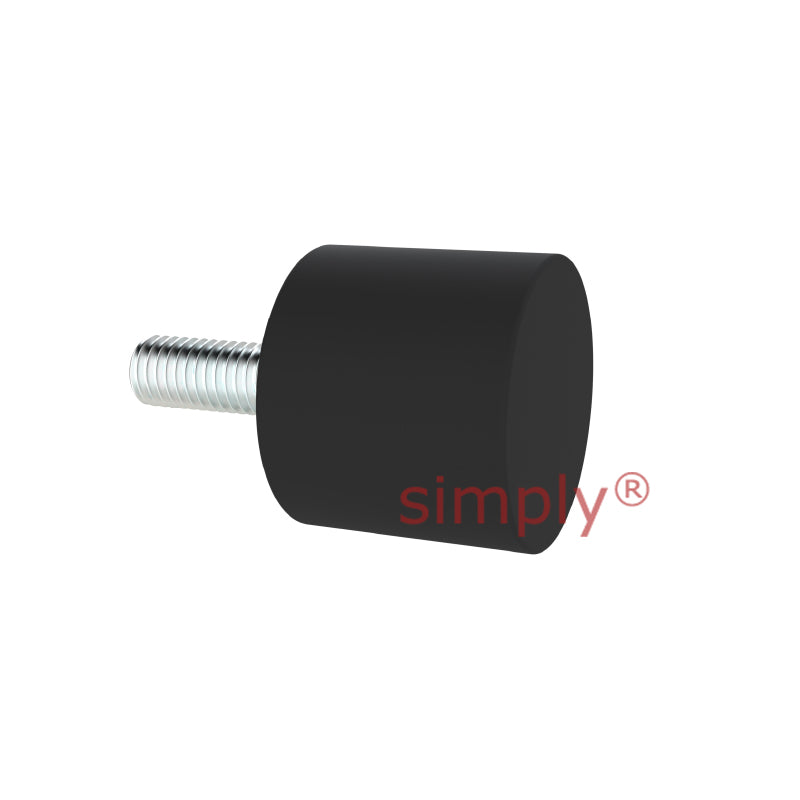

High-Performance Stainless Steel Male Rubber Cylindrical Bump Stop 10x10mm M4 Thread - Allow 2-3 Days
High-Performance Stainless Steel Male Rubber Cylindrical Bump Stop 10x10mm M4 Thread - Allow 2-3 Days
Regular price
$5.71
ex VAT
Regular price
Sale price
$5.71
ex VAT
Low stock
Quantity
Couldn't load pickup availability
Share this product
Description
Description
Male Stainless Steel Flat Buffers: These male anti-vibration flat buffers represent an ideal low-cost solution to your vibration dampening requirements. They are used mainly in compression, and are available with various configurations. Constructed of stainless corrosion resistant steel sandwiched between natural shock absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
- Brand / Quality:
- Simply AV Mounts
- Thread Size:
- M4
- Outside Diameter:
- 10mm
- Length:
- 10mm
- Material:
- Stainless Steel
- Overall Length:
- 18mm
Technical
Technical
| L | 10mm |
|---|---|
| D | 10mm |
| D1 | M4 |
| L1 | 8mm |
| Max Compressive Load | 4.9kg |
| Deflection at Max Compressive Load | 1.1mm |
| Temperature Range | -30 deg C to +80 deg C |
| Hardness | 55 Shore A Hardness |
| Weight | 0.01 kg |
| Nuts | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M4+steel+nut">M4 Click Here</a> |
| Set Screws | <a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M4+set+screw">M4 Click Here</a> |
