SKU: 713-302055A2

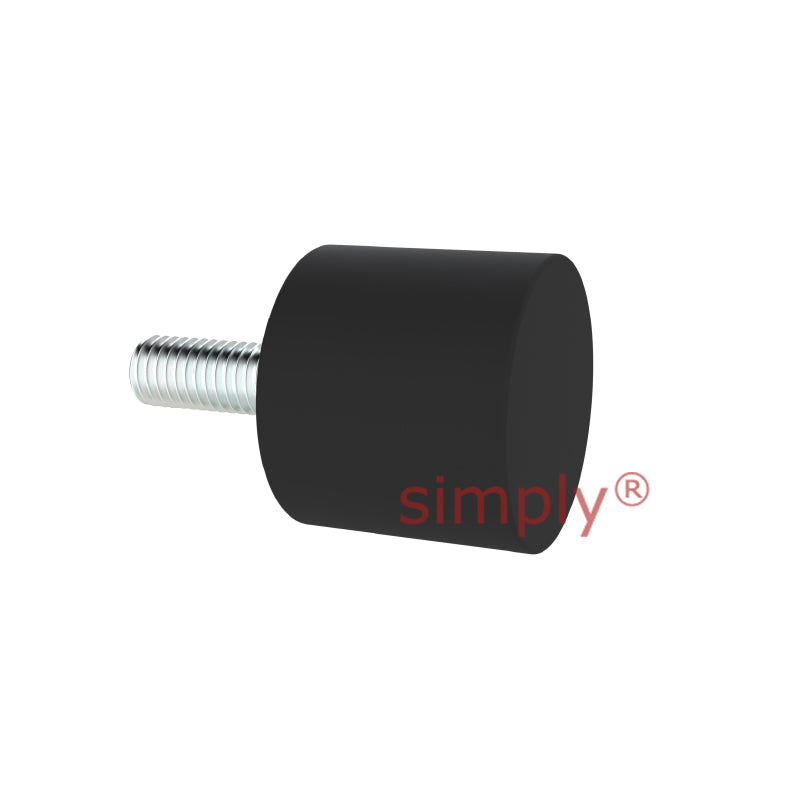

High-Performance Stainless Steel Male Rubber Cylindrical Bump Stop 30x20mm M8 Thread

Name: High-Performance Stainless Steel Male Rubber Cylindrical Bump Stop 30x20mm M8 Thread
Brand: Simply AV Mounts
SKU: 713-302055A2
Price: 8.94 USD
Availability: InStock

$8.94 ex VAT

Sale Sold out

In stock

Price Break

4+ $5.99

9+ $5.65

14+ $5.58

19+ $5.52

49+ $5.45

17+ $5.38

99+ $5.05

199+ $4.98

249+ $4.91

499+ $4.84

999+ $4.71

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M8
Outside Diameter:: 30mm
Length:: 20mm
Material:: Stainless Steel
Overall Length:: 43mm

Technical

L	20mm
D	30mm
D1	M8
L1	23mm
Max Compressive Load	50kg
Deflection at Max Compressive Load	2.4mm
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.04 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
