SKU: 713-303055A2

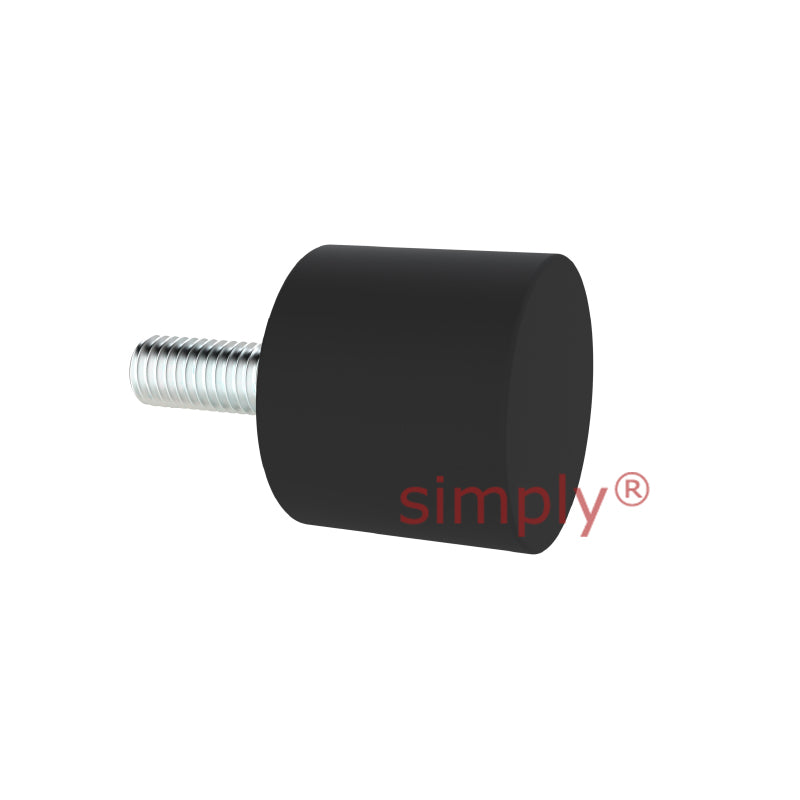

High-Performance Stainless Steel Male Rubber Cylindrical Bump Stop 30x30mm M8 Thread
- Regular price
- $9.18 ex VAT
- Sale price
- $9.18
- Regular price
-
Not in stock
Quantity Price Breaks
4
$8.17
9
$7.71
14
$7.62
19
$7.53
49
$7.44
17
$7.34
99
$6.89
199
$6.79
249
$6.70
499
$6.61
999
$6.43
SKU:
713-303055A2
High-Performance Stainless Steel Male Rubber Cylindrical Bump Stop 30x30mm M8 Thread
- Regular price
- $9.18 ex VAT
- Sale price
- $9.18
- Regular price
-
Description
Male Stainless Steel Flat Buffers: These male anti-vibration flat buffers represent an ideal low-cost solution to your vibration dampening requirements. They are used mainly in compression, and are available with various configurations. Constructed of stainless corrosion resistant steel sandwiched between natural shock absorbing rubber.
Rohs: Compliant as standard.
Benefits: Excellent anti-vibration and dampening properties, low cost, a wide range of sizes available, other materials on request.
Technical
| L | = | 30mm |
| D | = | 30mm |
| D1 | = | M8 |
| L1 | = | 23mm |
| Max Compressive Load | = | 42.8kg |
| Deflection at Max Compressive Load | = | 3.9mm |
| Temperature Range | = | -30 deg C to +80 deg C |
| Hardness | = | 55 Shore A Hardness |
| Weight | = | 0.04 kg |
| Nuts | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M8+steel+nut" |
| > | = | M8 Click Here< |
| /a> | = | |
| Set Screws | = | < |
| a href=" | = | advanced_search_result.php?sort=2a& |
| search_in_description=1& | = | keywords=M8+set+screw" |
| > | = | M8 Click Here< |
| /a> | = |
