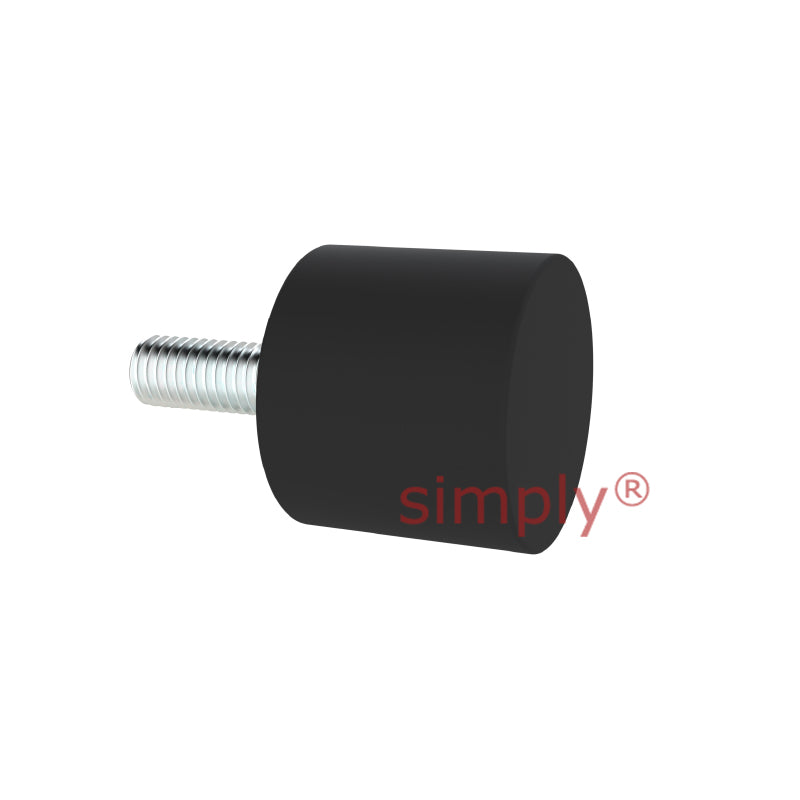

High-Performance Male Rubber Cylindrical Bump Stop 40x25mm M8 Thread

Name: High-Performance Male Rubber Cylindrical Bump Stop 40x25mm M8 Thread
Brand: Simply AV Mounts
SKU: 713-40250855
Price: 7.47 USD
Availability: InStock

$7.47 ex VAT

Sale Sold out

In stock

Price Break

4+ $4.90

9+ $4.63

14+ $4.57

19+ $4.52

49+ $4.46

17+ $4.41

99+ $4.13

199+ $4.08

249+ $4.02

499+ $3.97

999+ $3.86

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M8
Outside Diameter:: 40mm
Length:: 25mm
Material:: Bright Zinc Plated Steel
Overall Length:: 48mm

Technical

L	25mm
D	40mm
D1	M8
L1	23mm
Max Compressive Load	72.2kg
Deflection at Max Compressive Load	3.2mm
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.06 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+steel+nut">M8 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M8+set+screw">M8 Click Here</a>
