SKU: 713-40301055

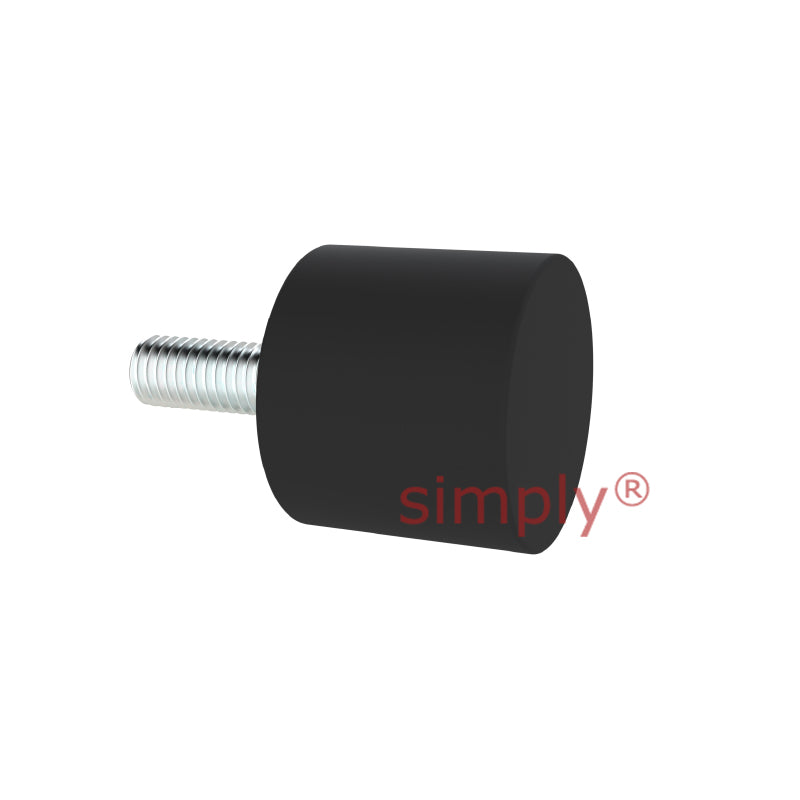

High-Performance Male Rubber Cylindrical Bump Stop 40x30mm M10 Thread

Name: High-Performance Male Rubber Cylindrical Bump Stop 40x30mm M10 Thread
Brand: Simply AV Mounts
SKU: 713-40301055
Price: 8.18 USD
Availability: InStock

$8.18 ex VAT

Sale Sold out

In stock

Price Break

4+ $5.38

9+ $5.07

14+ $5.01

19+ $4.95

49+ $4.89

17+ $4.83

99+ $4.53

199+ $4.47

249+ $4.41

499+ $4.35

999+ $4.23

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 40mm
Length:: 30mm
Material:: Bright Zinc Plated Steel
Overall Length:: 58mm

Technical

L	30mm
D	40mm
D1	M10
L1	28mm
Max Compressive Load	76.4kg
Deflection at Max Compressive Load	3.9mm
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.08 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
