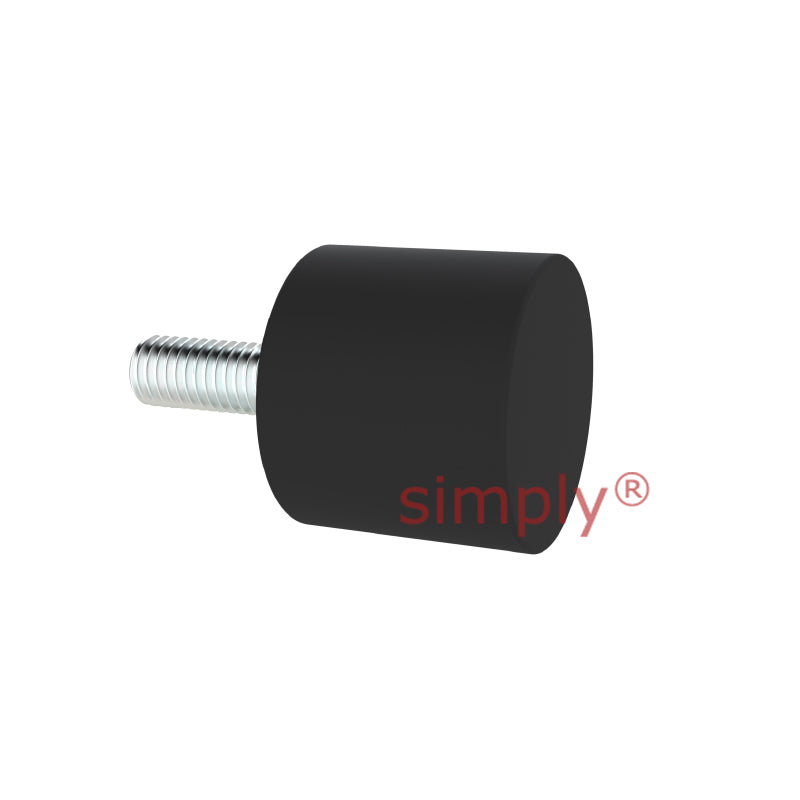

High-Performance Male Rubber Cylindrical Bump Stop 50x50mm M10 Thread

Name: High-Performance Male Rubber Cylindrical Bump Stop 50x50mm M10 Thread
Brand: Simply AV Mounts
SKU: 713-505055
Price: 14.79 USD
Availability: InStock

$14.79 ex VAT

Sale Sold out

In stock

Price Break

4+ $9.91

9+ $9.35

14+ $9.24

19+ $9.13

49+ $9.02

17+ $8.91

99+ $8.35

199+ $8.24

249+ $8.13

499+ $8.02

999+ $7.79

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 50mm
Length:: 50mm
Material:: Bright Zinc Plated Steel
Overall Length:: 78mm

Technical

L	50mm
D	50mm
D1	M10
L1	28mm
Max Compressive Load	124kg
Deflection at Max Compressive Load	6.9mm
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.18 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
