SKU: 714-40301055

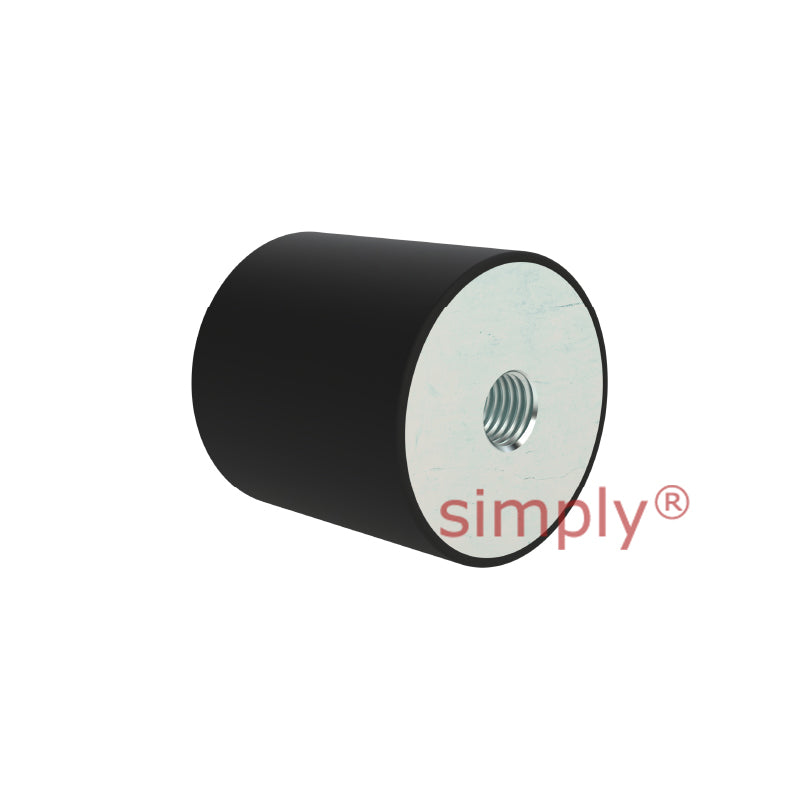

High-Performance Female Rubber Cylindrical Bump Stop 40x30mm M10 Thread

Name: High-Performance Female Rubber Cylindrical Bump Stop 40x30mm M10 Thread
Brand: Simply AV Mounts
SKU: 714-40301055
Price: 8.00 USD
Availability: InStock

$8.00 ex VAT

Sale Sold out

In stock

Price Break

4+ $5.25

9+ $4.96

14+ $4.90

19+ $4.84

49+ $4.78

17+ $4.72

99+ $4.43

199+ $4.37

249+ $4.31

499+ $4.25

999+ $4.13

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

Brand / Quality:: Simply AV Mounts
Thread Size:: M10
Outside Diameter:: 40mm
Length:: 30mm
Material:: Bright Zinc Plated Steel

Technical

L	30mm
D	40mm
D1	M10
L1	10mm
Max Compressive Load	76.4kg
Deflection at Max Compressive Load	3.9mm
Temperature Range	-30 deg C to +80 deg C
Hardness	55 Shore A Hardness
Weight	0.07 kg
Nuts	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+steel+nut">M10 Click Here</a>
Set Screws	<a href="advanced_search_result.php?sort=2a&search_in_description=1&keywords=M10+set+screw">M10 Click Here</a>
