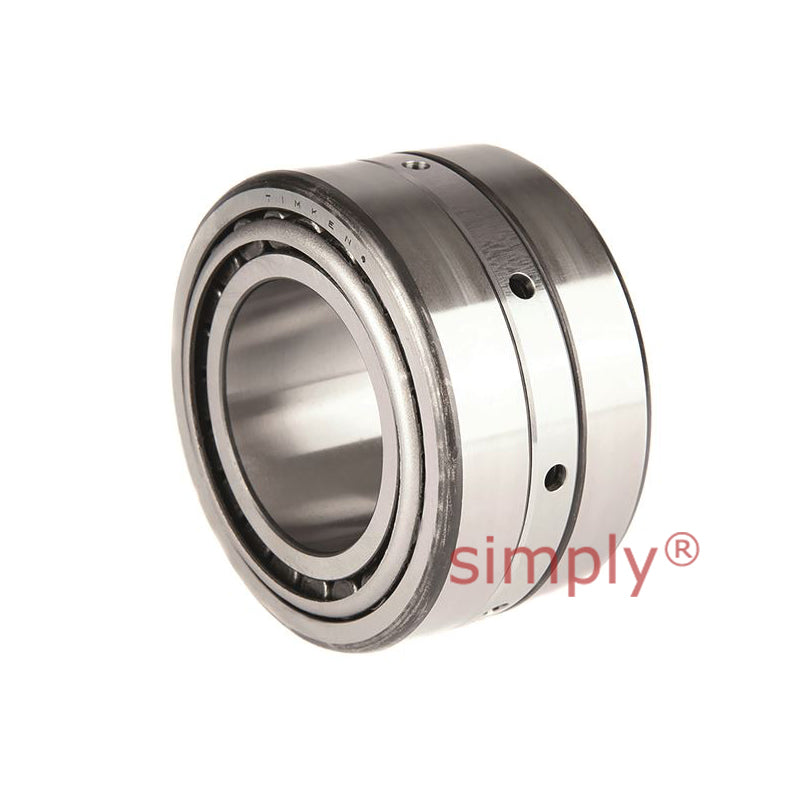

Timken 71426D/71750 TDI Double Inner Race Taper Roller Bearing 4.25x7.5x3.875x4 inch
Timken 71426D/71750 TDI Double Inner Race Taper Roller Bearing 4.25x7.5x3.875x4 inch
Out of stock
Description
Description

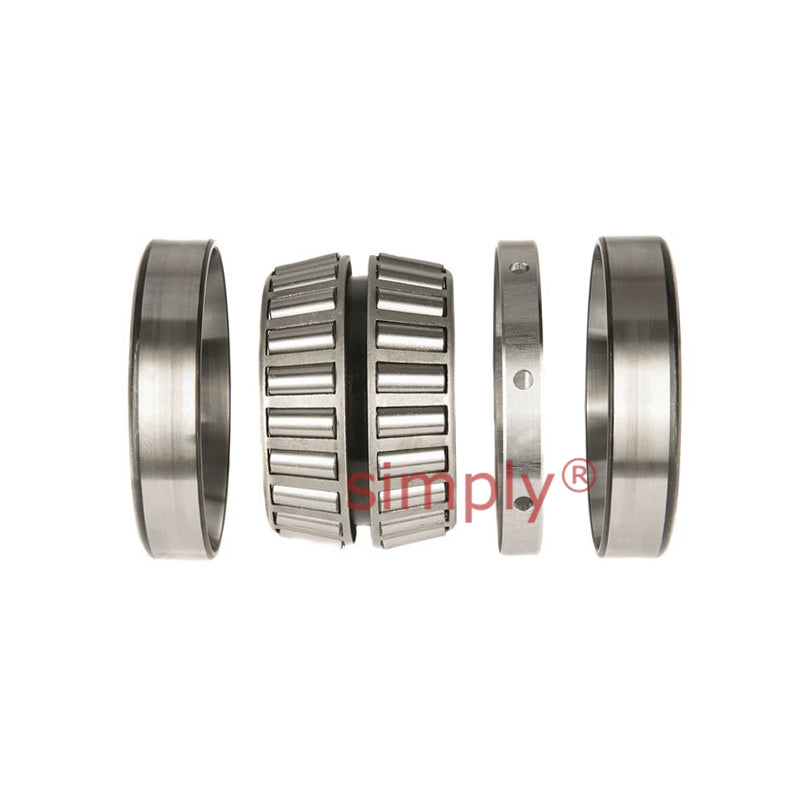

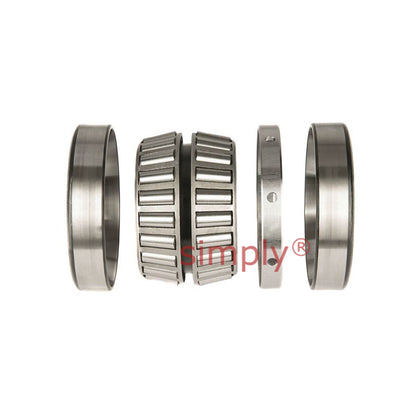

Timken Taper Roller Bearings: These bearings have a double tapered inner raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).
Benefits: Used widely in transmissions, can be used in oil or greased, high radial and axial load
- Brand / Quality:
- Timken - High Quality
- Inside Diameter:
- 107.95mm = 4.25 (4-1/4) inch
- Outside Diameter:
- 190.5mm = 7.5 (7-1/2) inch
- Width:
- 98.43mm = 3.875 (3-7/8) inch
Technical
Technical
| d | 107.95mm = 4.25 inch |
|---|---|
| D | 190.5mm = 7.5 inch |
| T | 98.425mm = 3.875 inch |
| C | 101.6mm = 4 inch |
| Dynamic (1) C1 | 586000N |
| Factors (5) e | 0.42 |
| Factors (5) Y1 | 1.62 |
| Factors (5) Y2 | 2.42 |
| Dynamic (2) C90 | 87300N |
| Dynamic (2) Ca90 | 62200N |
| Dynamic (2) C90(2) | 152000N |
| Factors (5) K | 1.4 |
| Shaft max shaft fillet radius R (3) | 1.5mm = 0.06 inch |
| Shaft backing shoulder diameter da | 122mm = 4.8 inch |
| Housing max shaft fillet radius r (3) | 3.3mm = 0.13 inch |
| Housing backing shoulder diameter Db | 171mm = 6.73 inch |
| G1 | 269 |
| G2 | 45.7 |
| Cg | 0.1156 |
