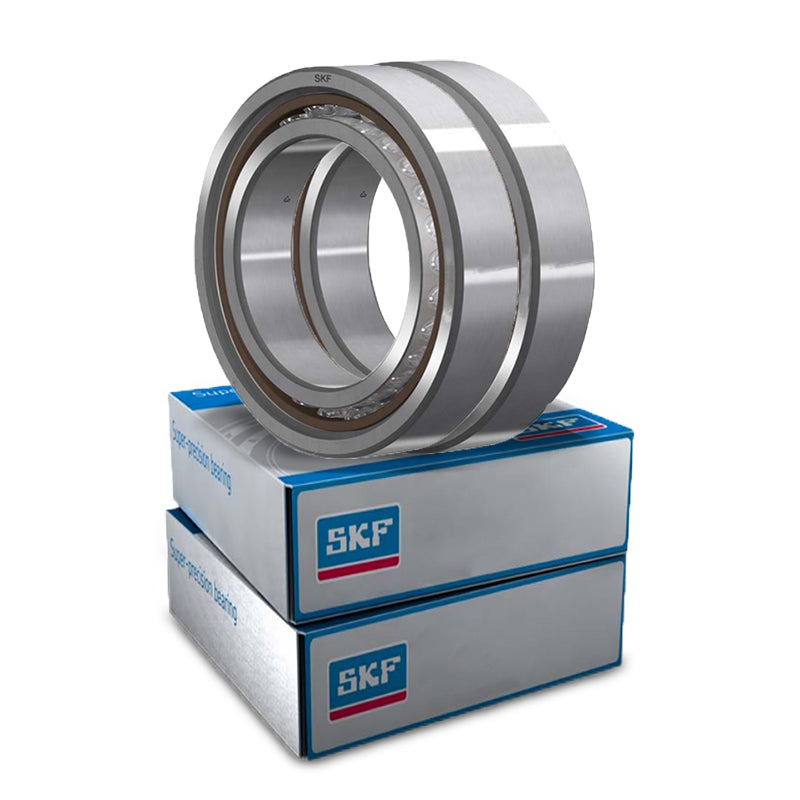

SKF 71948ACD/P4ADGB Super Precision Angular Contact Spindle Bearing 240x320x38mm (Set of 2)

SKF Super Precision Angular Contact Ball Bearings: These bearings have internal raceways that are effectively opposite each other, they are designed to accommodate both axial and radial loads and when used in pairs have a tremendous load-bearing capacity. Note: Load is applied in the direction of the inner raceways largest diameter (one side will be smaller than the other in diameter), in smaller bearings, this is difficult to check, in these cases, the thrust is applied from the side where the bearing number markings are not present.
The raceways and balls of these bearings are manufactured from Carbon Chromium steel.
This item is supplied as a set of 2 universally matchable bearings.
Please contact our Sales Support team if you need to check the specification before purchase.

Brand / Quality:

SKF - High Quality

Inside Diameter:

240mm

Outside Diameter:

320mm

Width:

38mm

Seals / Shields:

None

Style:

Single Universal Matchable Bearing

Contact Angle:

25 Degree contact angle
