• UKF 719USO90A210IM Super Precision Double Row Angular Contact Spindle Bearing 90x125x36mm
1 1

SKU: 719USO90 .A21.0/I.M-UKF

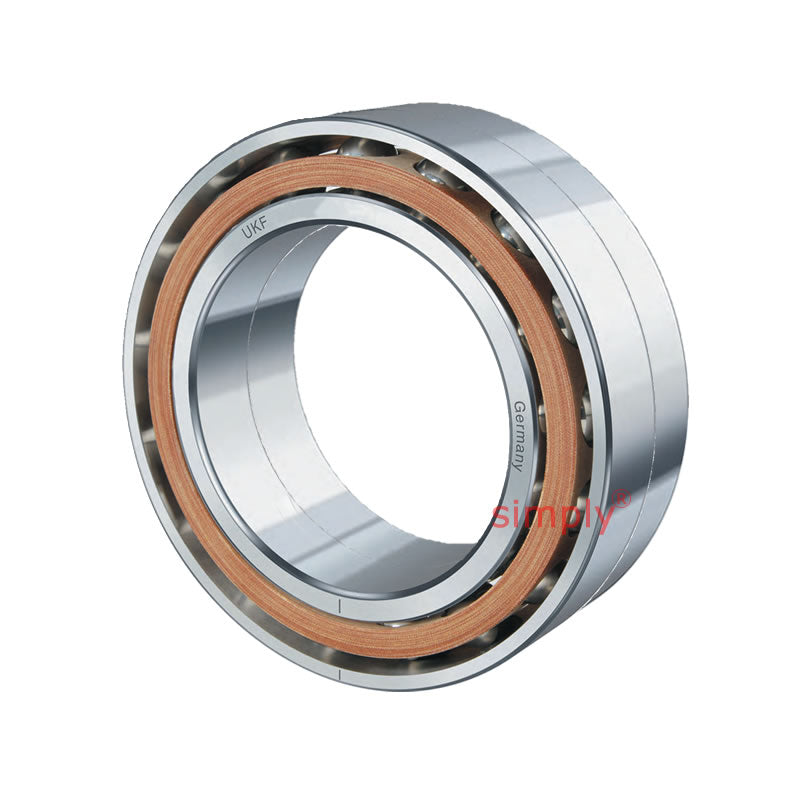

UKF 719USO90A210IM Super Precision Double Row Angular Contact Spindle Bearing 90x125x36mm

UKF 719USO90A210IM Super Precision Double Row Angular Contact Spindle Bearing 90x125x36mm
$571.38 ex VAT
$571.38 ex VAT
Sale Sold out

Equivalent to: 719USO90 .A21.0/I.M

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
UKF - High Quality
Inside Diameter:
90mm
Outside Diameter:
125mm
Width:
36mm
Seals / Shields:
None
Style:
Double Row Angular Contact Spindle Bearings
Contact Angle:
21 Degree contact angle
Bearing Preload:
Medium preload
Technical
d 90mm
D 125mm
B 36mm
Dynamic load Co 87200 N
Static load C 75600 N
Speed in Grease 8000 rpm
Speed in Oil 13000 rpm
r<sub>a</sub> 0.6mm
d<sub>a</sub> 96.5mm
D<sub>a</sub> 118.5mm
Axial Preload F<sub>v</sub> L 370 N
Axial Preload F<sub>v</sub> M 1100 N
Axial Preload F<sub>v</sub> S 2200 N
Axial Rigidity R<sub>a</sub> L 155 N/&mu;m
Axial Rigidity R<sub>a</sub> M 225 N/&mu;m
Axial Rigidity R<sub>a</sub> S 280 N/&mu;m
Radial Rigidity R<sub>r</sub> L 630 N/&mu;m
Radial Rigidity R <sub>r</sub> M 900 N/&mu;m
Radial Rigidity <sub>r</sub> S 1140 N/&mu;m
Weight 1.15 kg
