SKU: 719USOC100-UKF

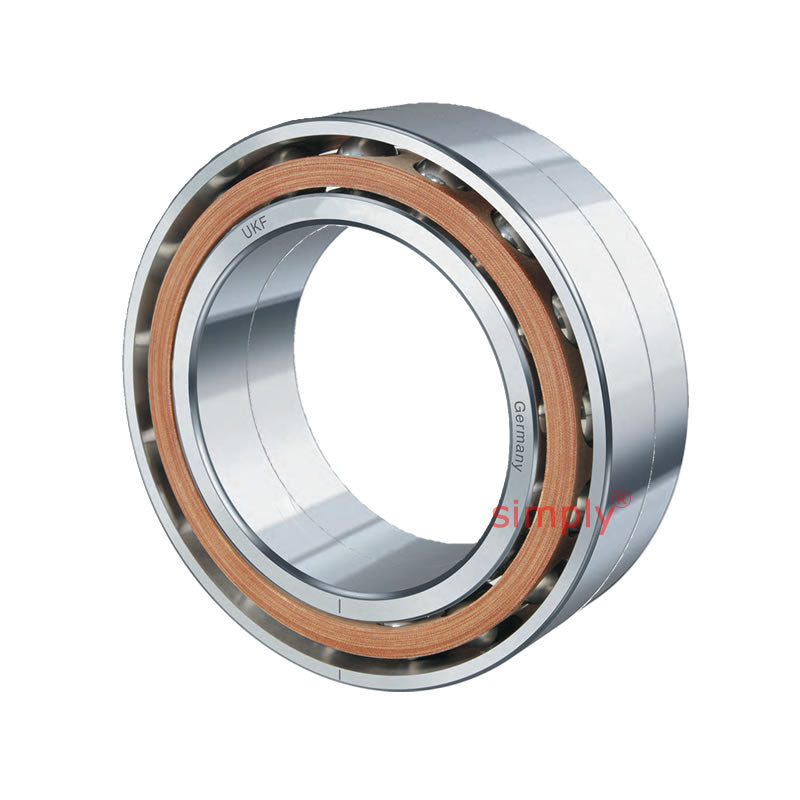

UKF 719USOC100 Super Precision Double Row Angular Contact Spindle Bearing 100x140x40mm
UKF 719USOC100 Super Precision Double Row Angular Contact Spindle Bearing 100x140x40mm
Equivalent to: 719USOC100
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 100mm
- Outside Diameter:
- 140mm
- Width:
- 40mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
Technical
Technical
| d | 100mm |
|---|---|
| D | 140mm |
| B | 40mm |
| Dynamic load Co | 65175 N |
| Static load C | 65520 N |
| Speed in Grease | 9800 rpm |
| Speed in Oil | 16100 rpm |
| r<sub>a</sub> | 0.6mm |
| d<sub>a</sub> | 107mm |
| D<sub>a</sub> | 132mm |
| Axial Preload F<sub>v</sub> L | 440 N |
| Axial Preload F<sub>v</sub> M | 1320 N |
| Axial Preload F<sub>v</sub> S | 2640 N |
| Axial Rigidity R<sub>a</sub> L | 127 N/μm |
| Axial Rigidity R<sub>a</sub> M | 288 N/μm |
| Axial Rigidity R<sub>a</sub> S | 357 N/μm |
| Radial Rigidity R<sub>r</sub> L | 794 N/μm |
| Radial Rigidity R <sub>r</sub> M | 1150 N/μm |
| Radial Rigidity <sub>r</sub> S | 1449 N/μm |
| Weight | 1.33 kg |
