• UKF 719USOC17A210IM Super Precision Double Row Angular Contact Spindle Bearing 17x30x14mm
1 1

SKU: 719USOC17 .A21.0/I.M-UKF

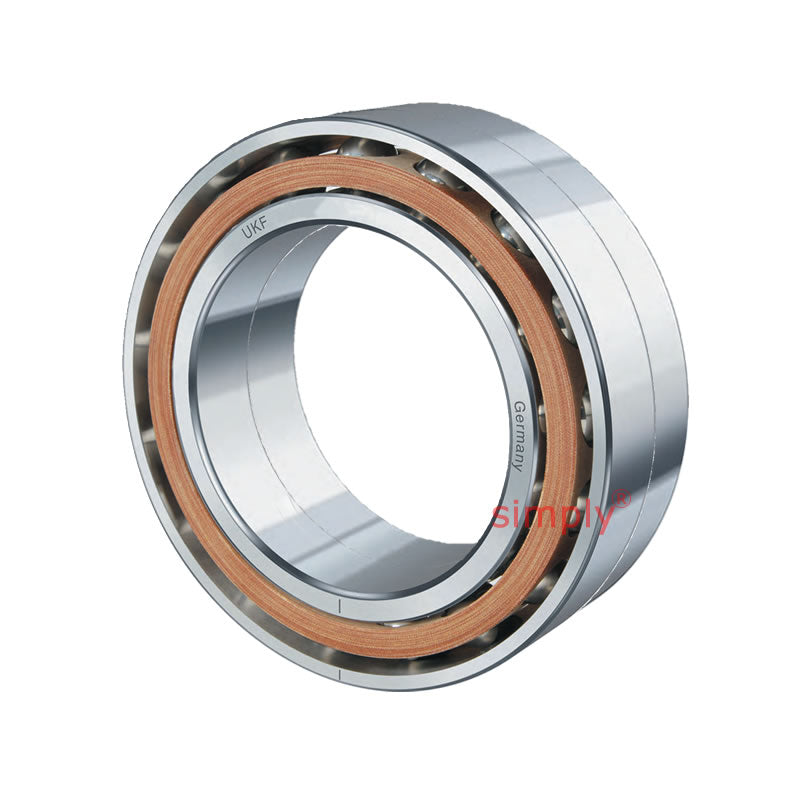

UKF 719USOC17A210IM Super Precision Double Row Angular Contact Spindle Bearing 17x30x14mm

UKF 719USOC17A210IM Super Precision Double Row Angular Contact Spindle Bearing 17x30x14mm
$393.69 ex VAT
$393.69 ex VAT
Sale Sold out

Equivalent to: 719USOC17 .A21.0/I.M

In stock

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
Brand / Quality:
UKF - High Quality
Inside Diameter:
17mm
Outside Diameter:
30mm
Width:
14mm
Seals / Shields:
None
Style:
Double Row Angular Contact Spindle Bearings
Contact Angle:
21 Degree contact angle
Bearing Preload:
Medium preload
Technical
d 17mm
D 30mm
B 14mm
Dynamic load Co 3135 N
Static load C 5950 N
Speed in Grease 52500 rpm
Speed in Oil 82600 rpm
r<sub>a</sub> 0.15mm
d<sub>a</sub> 19.5mm
D<sub>a</sub> 27.5mm
Axial Preload F<sub>v</sub> L 40 N
Axial Preload F<sub>v</sub> M 110 N
Axial Preload F<sub>v</sub> S 220 N
Axial Rigidity R<sub>a</sub> L 39 N/&mu;m
Axial Rigidity R<sub>a</sub> M 58 N/&mu;m
Axial Rigidity R<sub>a</sub> S 69 N/&mu;m
Radial Rigidity R<sub>r</sub> L 155 N/&mu;m
Radial Rigidity R <sub>r</sub> M 219 N/&mu;m
Radial Rigidity <sub>r</sub> S 276 N/&mu;m
Weight 0.03 kg
