SKU: 719USOC75-UKF

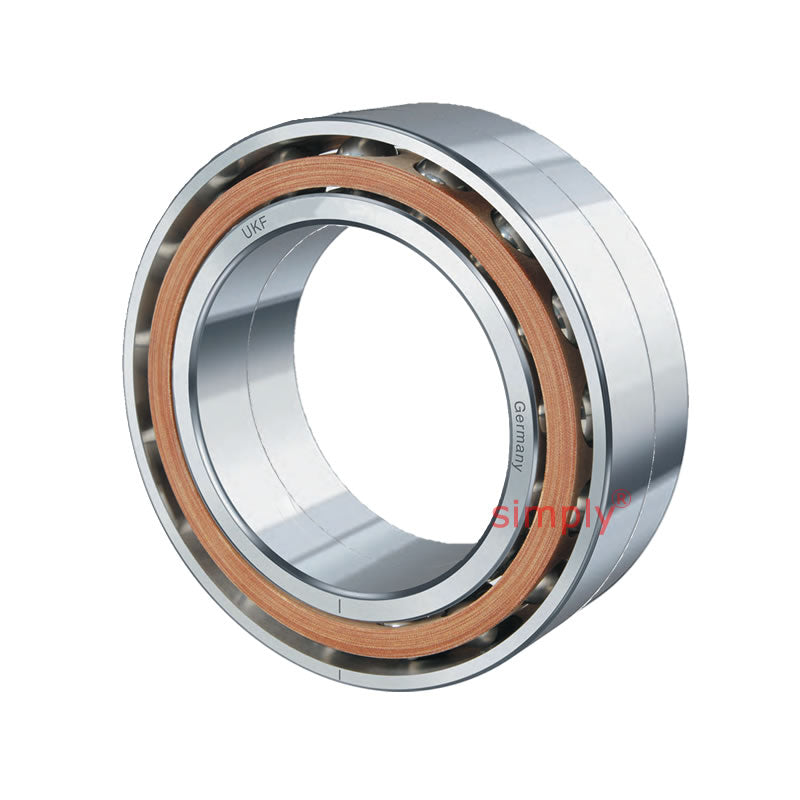

UKF 719USOC75 Super Precision Double Row Angular Contact Spindle Bearing 75x105x32mm
UKF 719USOC75 Super Precision Double Row Angular Contact Spindle Bearing 75x105x32mm
Equivalent to: 719USOC75
Out of stock
Share this product
Description
Description
- Brand / Quality:
- UKF - High Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 105mm
- Width:
- 32mm
- Seals / Shields:
- None
- Style:
- Double Row Angular Contact Spindle Bearings
Technical
Technical
| d | 75mm |
|---|---|
| D | 105mm |
| B | 32mm |
| Dynamic load Co | 33550 N |
| Static load C | 39200 N |
| Speed in Grease | 13300 rpm |
| Speed in Oil | 21000 rpm |
| r<sub>a</sub> | 0.3mm |
| d<sub>a</sub> | 80.5mm |
| D<sub>a</sub> | 99.5mm |
| Axial Preload F<sub>v</sub> L | 260 N |
| Axial Preload F<sub>v</sub> M | 780 N |
| Axial Preload F<sub>v</sub> S | 1560 N |
| Axial Rigidity R<sub>a</sub> L | 144 N/μm |
| Axial Rigidity R<sub>a</sub> M | 207 N/μm |
| Axial Rigidity R<sub>a</sub> S | 265 N/μm |
| Radial Rigidity R<sub>r</sub> L | 587 N/μm |
| Radial Rigidity R <sub>r</sub> M | 840 N/μm |
| Radial Rigidity <sub>r</sub> S | 1058 N/μm |
| Weight | 0.6 kg |
